Samchully HCF Series 4-Jaw, Closed-Center Power Chuck, 18" Size - HCF-18
The HCF-18 is a precision-engineered 4-jaw closed-center power chuck designed for clamping square, rectangular, or irregularly shaped workpieces with exceptional accuracy and balance. The closed-center body protects internal mechanisms from chip and coolant infiltration—perfect for demanding environments that require cleanliness and long-lasting reliability.
Technical Features:
Built with a rugged closed-center body, the HCF-18 ensures consistent clamping force while preventing internal contamination from debris and fluids. The 4-jaw layout enables enhanced gripping of asymmetric parts with better force distribution. This model features a jaw stroke of 16mm, a maximum gripping force of 165.8kN, and supports spindle speeds up to 2,710 RPM. Constructed from high-strength alloy steel and balanced for smooth rotation, the HCF-18 delivers high performance in applications requiring both precision and adaptability. Compatible with standard hydraulic cylinders for easy integration.

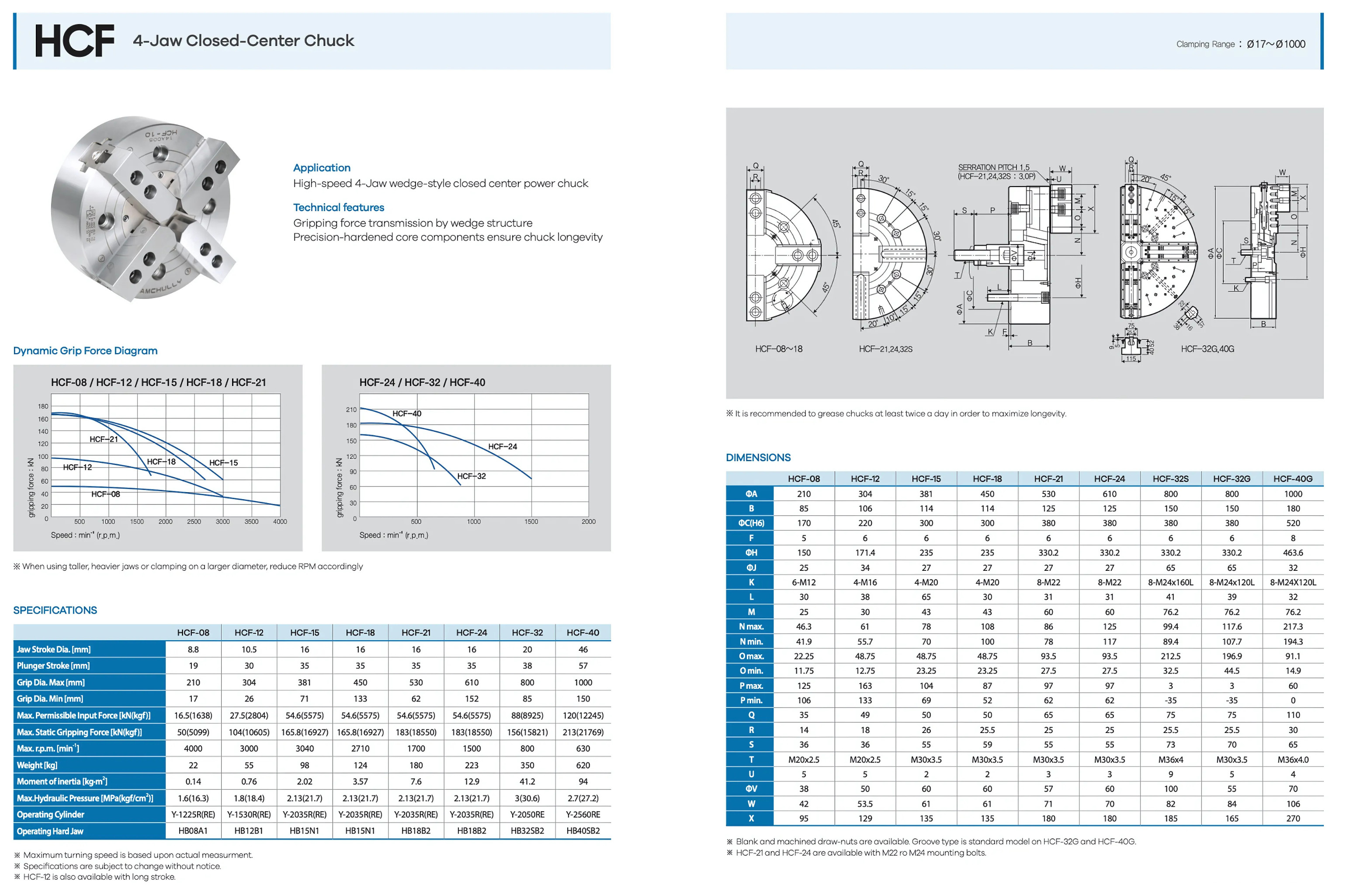

View the HCF Series Power Chucks Specifications
Specifications:
| SKU | HCF-18 [M30 x 3.5] |
| Includes | Mounting Bolts; Soft Top Jaws; Master Jaws; T-Nuts; Handle |
| Weight (kg) | 124 |
| Grip Dia. Max (mm) | 450 |
| Grip Dia. Min. (mm) | 133 |
| Jaw Stroke Dia. (mm) | 16 |
| Plunger Stroke (mm) | 35 |
| Max. Permissible Input Force [kN(kgf)] | 54.6(5575) |
| Max. Static Gripping Force [kN(kgf)] | 165.8(16927) |
| Max. R.P.M. | 2710 |
| Series | HCF |
| Size | 18" |
| Jaws | 4 |
