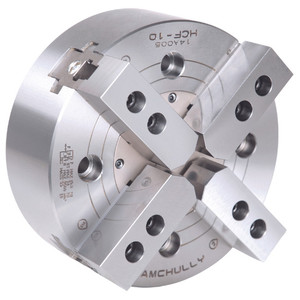

Samchully HCF Series 4-Jaw, Closed-Center Power Chuck, 8" Size - HCF-08V1
Brand: Samchully- SKU:
- HCF-08V1
- ID:
- 880458
Samchully HCF Series 4-Jaw, Closed-Center Power Chuck, 8" Size - HCF-08V1
The HCF-08 is a precision-engineered 4-jaw closed-center power chuck designed for clamping square, rectangular, or irregularly shaped workpieces with exceptional accuracy and balance. The closed-center body protects internal mechanisms from chip and coolant infiltration—perfect for demanding environments that require cleanliness and long-lasting reliability.
Technical Features:
Built with a rugged closed-center body, the HCF-08 ensures consistent clamping force while preventing internal contamination from debris and fluids. The 4-jaw layout enables enhanced gripping of asymmetric parts with better force distribution. This model features a jaw stroke of 8.8mm, a maximum gripping force of 50kN, and supports spindle speeds up to 4,000 RPM. Constructed from high-strength alloy steel and balanced for smooth rotation, the HCF-08 delivers high performance in applications requiring both precision and adaptability. Compatible with standard hydraulic cylinders for easy integration.
View the HCF Series Power Chucks Specifications
Specifications:
| SKU | HCF-08V1 [M20 x 2.5] |
| Includes | Mounting Bolts; Soft Top Jaws; Master Jaws; T-Nuts; Handle |
| Weight (kg) | 22 |
| Grip Dia. Max (mm) | 210 |
| Grip Dia. Min. (mm) | 17 |
| Jaw Stroke Dia. (mm) | 8.8 |
| Plunger Stroke (mm) | 19 |
| Max. Permissible Input Force [kN(kgf)] | 16.5(1638) |
| Max. Static Gripping Force [kN(kgf)] | 50(5099) |
| Max. R.P.M. | 4000 |
| Series | HCF |
| Size | 8" |
| Jaws | 4 |
| Includes | 4 Jaws |
See all Samchully HCF Series 4-Jaw, Closed-Center Power Chucks
