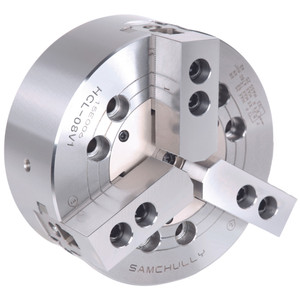

Samchully HCL Series 3-Jaw, Closed-Center, Long-Stroke Power Chuck, 12" Size - HCL-12
The HCL-12 is a compact, long-stroke power chuck designed for high-precision clamping in clean machining environments. With its closed-center body, this chuck is ideal for vertical and horizontal lathes where chip and coolant intrusion must be minimized. The extended jaw stroke provides added flexibility for gripping a wider range of part diameters, making it especially useful for smaller round workpieces that require deep or adaptable clamping.
Technical Features:
The HCL-12 features an impressive 19.4mm jaw stroke, providing enhanced range for small-part applications. Its closed-center body offers strong protection against internal contamination, maintaining stable gripping force and improving longevity. Designed with an M24 x 3.0 threading, this model ensures seamless compatibility with hydraulic cylinders and other system components. Constructed from high-grade alloy steel and balanced for high-speed operation, the HCL-12 delivers consistent performance with reduced vibration. It’s an ideal solution where space, speed, and clamping adaptability all matter.

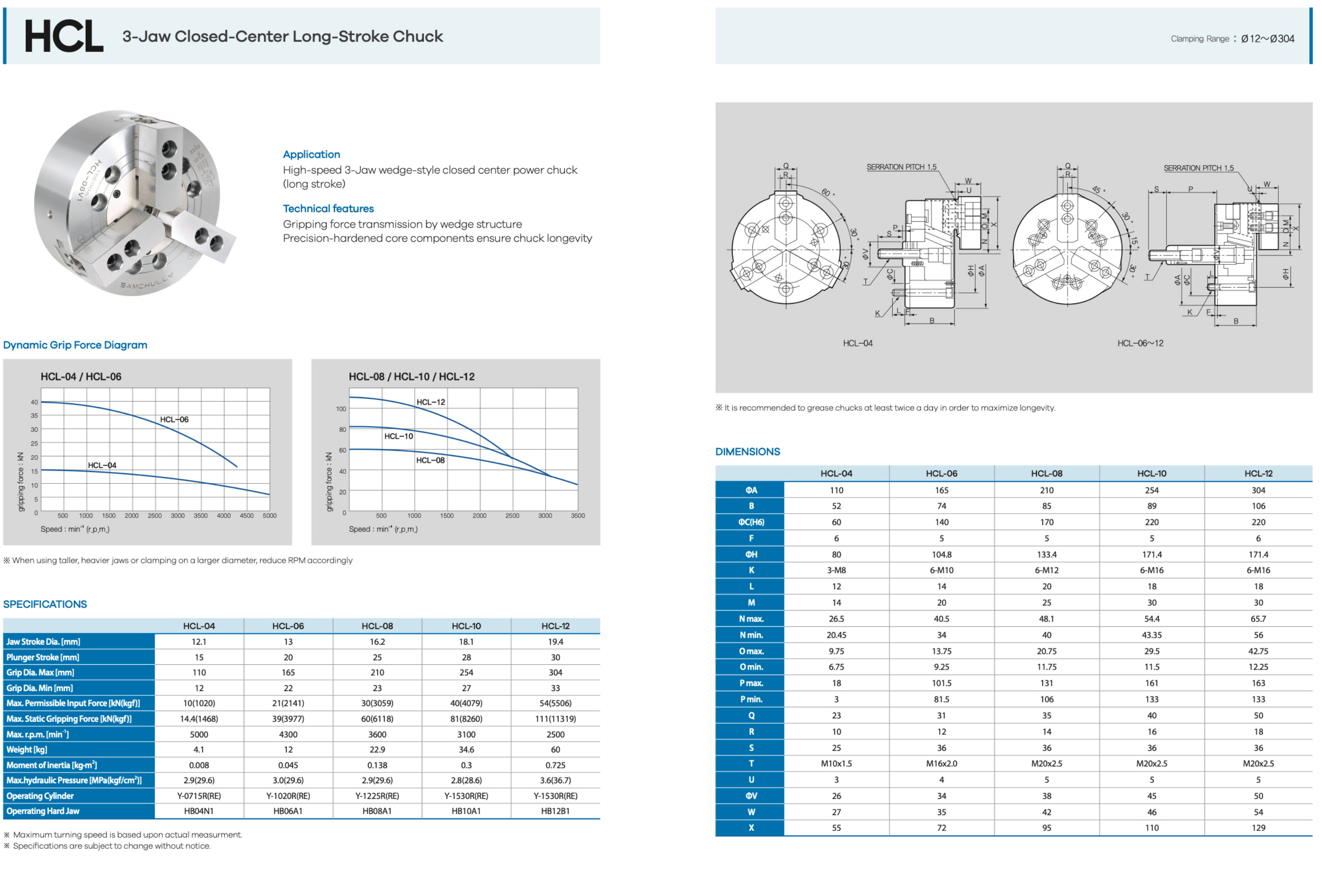

View the HCL Series Power Chucks Specifications
Specifications:
| SKU | HCL-12 [M24x3.0] |
| Includes | Mounting Bolts; Soft Top Jaws; Master Jaws; T-Nuts; Handle |
| Weight (kg) | 60 |
| Grip Dia. Max (mm) | 304 |
| Grip Dia. Min. (mm) | 33 |
| Jaw Stroke Dia. (mm) | 19.4 |
| Plunger Stroke (mm) | 30 |
| Max. Permissible Input Force [kN(kgf)] | 54(5506) |
| Max. Static Gripping Force [kN(kgf)] | 111(11319) |
| Max. R.P.M. | 2500 |
| Series | HCL |
| Size | 12" |
| Includes | 3 Jaws |
| Jaws | 3 |
