Samchully HCT Series 2-Jaw, Closed-Center Power Chuck, 12" Size - HCT-12
Brand: Samchully- SKU:
- HCT-12
- ID:
- 887417
Samchully HCT Series 2-Jaw, Closed-Center Power Chuck, 12" Size - HCT-12
The HCT-12 is a specialized 2-jaw closed-center power chuck engineered for precise clamping of irregular, non-cylindrical, or thin-walled workpieces—especially square, rectangular, or asymmetric parts. The closed-center design minimizes internal contamination, making it ideal for clean machining environments such as vertical lathes and milling-turn centers.
Technical Features:
The HCT-12 features a rigid, closed-center body that protects internal components from chips and coolant, ensuring consistent clamping force and longer service life. Its 2-jaw configuration enables gripping of square or odd-shaped parts with precision and stability. The chuck offers a jaw stroke of 10.5mm, a maximum gripping force of 104kN, and supports speeds up to 3,000 RPM. Designed for smooth, high-speed operation, the chuck body is manufactured from durable alloy steel and balanced to reduce vibration. The HCT-10 supports integration with standard hydraulic cylinders, offering a reliable solution for specialty turning applications that demand both power and part geometry flexibility.

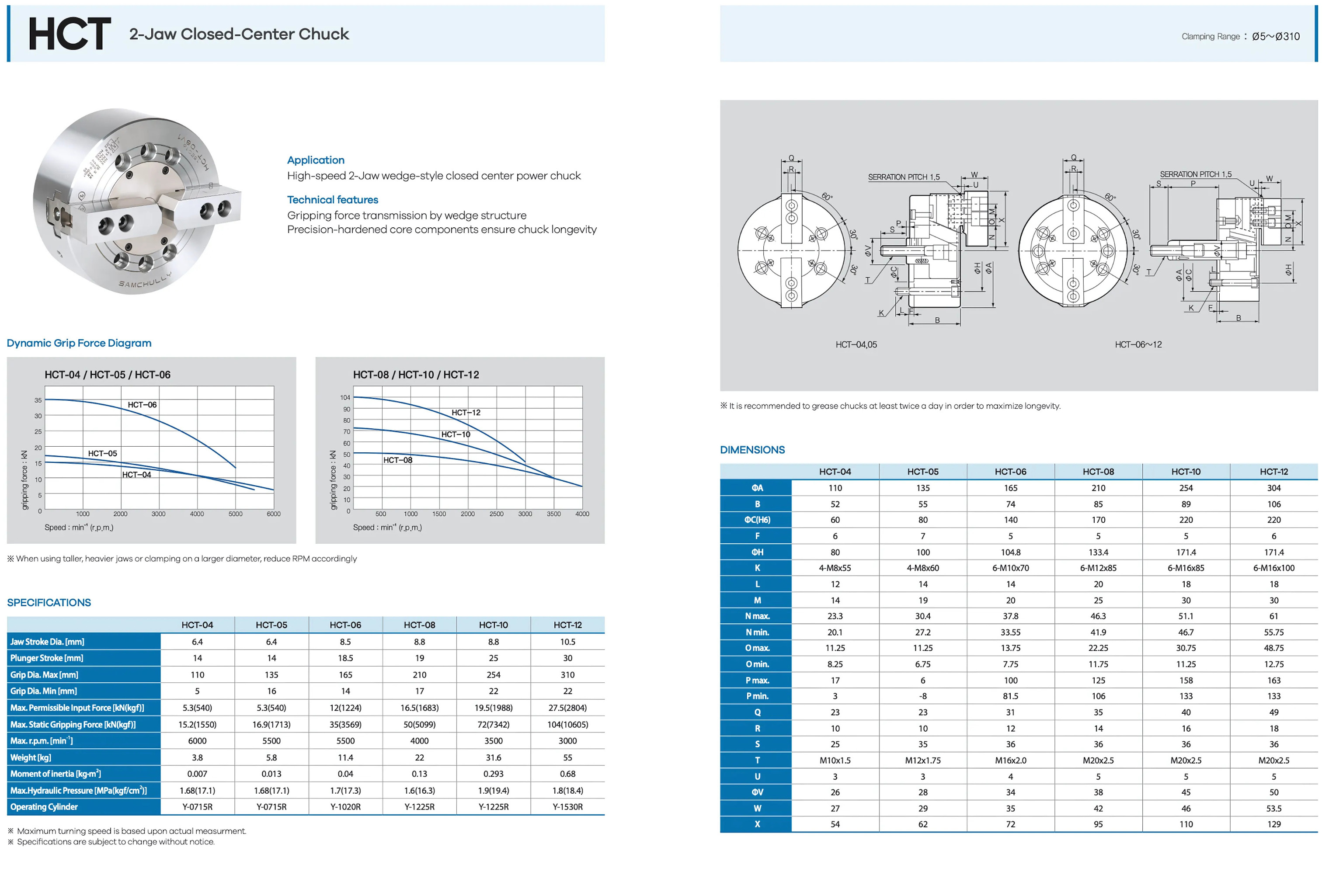

View the HCT Series 2-Jaw Closed-Center Power Chucks Specifications
Specifications:
| SKU | HCT-12 [M20x2.5] |
| Includes | Mounting Bolts; Soft Top Jaws; Master Jaws; T-Nuts; Handle |
| Kitagawa Equivalent | NT-12 |
| Grip Dia. Max (mm) | 310 |
| Grip Dia. Min. (mm) | 22 |
| Jaw Stroke Dia. (mm) | 10.5 |
| Plunger Stroke (mm) | 30 |
| Max. Permissible Input Force [kN(kgf)] | 27.5(2804) |
| Max. Static Gripping Force [kN(kgf)] | 104(10605) |
| Max. R.P.M. | 3000 |
| Weight [kg] | 55 |
| Series | HCT |
| Size | 12" |
| Jaws | 2 |
| Includes | 2 Jaws |
See all Samchully HCT Series 2-Jaw, Closed-Center Power Chucks
