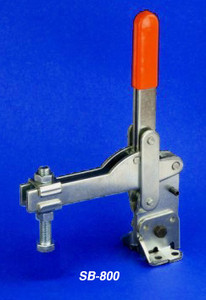

Knu-Vise Swivel Base Vertical Hold Down Clamp 4.75" Throat Depth - SB-800
Brand: Knu-Vise- SKU:
- SB-800
- ID:
- 327659
| Holding Capacity | 800 lbs. |
| Max. Clamping Thickness | 2.16" |
$59.95
Knu-Vise Swivel Base Vertical Hold Down Clamp 4.75" Throat Depth - SB-800
The Hold-Down action is the most common type of toggle clamp. They are available with handle that are either vertical or horizontal when the clamp is closed. They are used to apply a downward clamping force.
- Open Toggle Bar
- Weight: 3.7 lbs
- Holding Capacity: 800 lbs 3559 N
- Holding Capacity 2 in Front of Base: 1700 lbs 7562 N
- Maximum Clamping Thickness: 2.16 in 54.8 mm
- Throat Depth: 4.75 in 120.7 mm
- Swivel Base allows clamping angle to be adjusted +/- up to 90degrees from parallel
- Included 1:Spindle Assembly (N-470078)
For More Knu-Vise Swivel Base Vertical Hold Down Clamps Click Here
