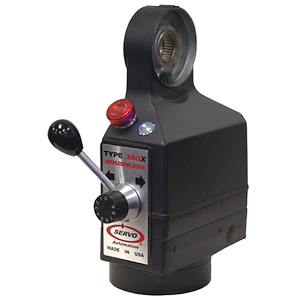

Servo Power Feed Only, without Mounting Hardware

Servo Power Feed Only, without Mounting Hardware

• Brushless DC motor (BLDC) provides greater efficiency and increased reliability.
• The only Servo unit without the mounting hardware.
• Continual monitoring of limit switches/E-Stop status, motor speed, voltage, and current using microprocessor technology.
• Produces a minimum of 350 inch/pounds of continuous torque as low as 0.3 inches/minute feed rate. This unit replaces our previous Type 140/150/200, resulting in one power feed that can be used on all three axes.
• Shop-tested performance proves superior to the legendary “Bridgeport” 6F/8F power feeds.
• Extremely accurate speed regulation under varying load conditions, as well as dynamic braking for quick stops.
• Dual voltage capable with an internal connector position change on the circuit board, plus an extremely wide input voltage range (90vac to 145vac) and high voltage selection (195vac to 250vac), resulting in stable operation during power fluctuations.
• Utilizes 75% less current under the same operating conditions than the present industry standard brushed DC motor designs.
• Drive gear changed from Delrin to hard coat anodized 7075 aluminum for extreme reliability and ability to handle the high torque loads.
• Safety overcurrent protection has been added to the motor/gear drive circuit. No more stripped gears.
• The ability to easily convert the unit from a table feed to a knee feed.
• Only power feed on the market with a safety E-Stop button.

Technical Data:

• Intermittent torque: 575 in./lb. / 65.0 NM.
• Continuous torque: 350 in./lb. / 39.6 NM @ < .5" per minute
• Variable feed rate: .40-32 ipm / 10-813 mm/min. (table and cross); .20-16 ipm / 5-406 mm/min. (knee).
• Rapid traverse: 32 ipm / 813 mm/min. (table and cross); 16 ipm / 406 mm/min. (knee).
• Gear reduction ratio (motor to screw shaft): 72:1.
• Electrical: 110V, 50/60 Hz, 4.5 Amps., 220v, 50/60 Hz, 2.25 Amps (dual voltage capability with internal jumper change).
• Comes with a 2 year warranty.
• Country of Origin: U.S.A.
