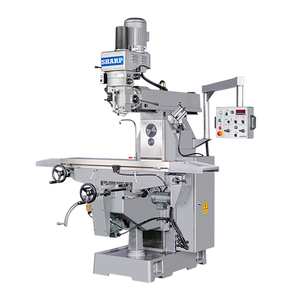

Sharp Industries Knee Type Vertical Milling Machine, 12" x 54" Table - V-2-DVS

Sharp Industries Knee Type Vertical Milling Machine, 12" x 54" Table

The V-2-DVS, 3-axis Variable Feed Vertical Mill with Digital Variable Speed Head is built for heavy cutting. The boxways on the vertical column and top of base allow extra support to the table under hard machining. The top of the saddle is coated with TURCITE-B for better retention of oil and wear resistance.

• 4-Way-Tilt Mill Head for Added Versatility
• Power Feed on X, Y & Z Axis
• Heavy-Duty, Box-Type Column
• Meehanite Casting

Features:

• Air Power drawbar
• Front-finned bellows cover (Y)
• Automation lubrication system
• X/Y/Z-axis gear motor, ½ HP
• Table surface Hardened & Ground with Turcite-B (X/Y)
• Spindle Shield
• X/Y-axis Lead Screw
• Back chip cover (Y)
• Control panel
• Coolant system (1/8 HP)
• Splash Pan (Chip Tray)
• Horizontal arbor (25.4mm) (1”)
• Working lamp, 24V
• Electric box
• Toolbox and Tools

Specifications:

• Table Size: 53.93 x 11.81"
• T-slots (No. x Width x Pitch): 3, 0.629, 2.75"
• Working surface to ground: 51.1 x 15 x 11.8"
• Table Maximum Load Capacity: 661 lbs.
• Table Travel: X Longitudinal: 39.37"
• Table Travel: Y Cross: 15.74"
• Knee Travel: Vertical: 18.5"
• Quill Travel: 5.51
• Ram Travel: 27.5"
• Ram Swivel: 360°
• Spindle Taper: NT40
• Spindle Speeds (Variable): 60-4,500 rpm (Inverter)
• Spindle Motor: 5 HP
• Quill Feeds (3 speeds)" 0.0015, 0.0031, 0.0059"
• Quill Diameter" 4.13
• Spindle Center to Column: 7.08 - 34.64"
• Spindle Nose to Table: 3.93-22.44"
• Vertical Head Swivel (L to R): 90°
• Vertical Head Tilt (Up and Down): Fixed
• Longitudinal Feeds: 1.18-39.37 in./min
• Cross Feeds: 1.18-39.37 in./min
• Vertical Feeds: 1.96-20.07 in./min
• Power Consumption (220V): 7 KVA/ 30amp
• Power Consumption (440V): 7 KVA/ 15amp
• Wiring Voltage: 220V/ 3Ph/ 60Hz
• Machine Dimensions (L×W×H): 95.2 x 82.6 x 103.1"
