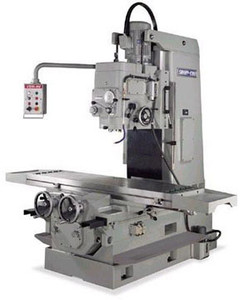

Sharp Industries Vertical Bed Mills
- Heavy duty vertical bed mill equipped with geared head spindle and massive hardened and ground bed ways for heavy milling
- The vertical column is made out of box shape high tensile strength casting reinforced with honeycombed ribbings. It offers excellent vibration dampening features and great mechanical and thermal stability.
- The saddle and vertical head travels on hardened and ground box ways that offer maximum rigidity. All top, front, rear reference surfaces and T slots are precision ground to exact tolerance.
- The vertical head is equipped with a #50 fixed quill spindle for heavy duty milling.
- Besides a manual coarse and fine feed on the vertical head, it is also equipped with power feed for easy positioning. A tri-lever handle mounted in the front for easy operation performs manual rapid movement of the head.
- A separate pendant control performs all the spindle operations, coolant and power drawbar operations .
- The unique sliding saddle base design allows easy movement of the entire 23” of the cross travel, manually or by power.
- The table is equipped with a double nut backlash eliminator, which adjusts the backlash on the table travel when the screw and nut start to wear out.
- The automatic lubrication system lubes the table and saddle ways.
- The extensive vertical head travel along with various feed rates offer capability for precise boring operations.
- A horizontal milling head (5 HP, #50 taper) is installed on the side of the vertical column on Model KMA-3H. It travels on precision ball screw with AC servo drive.
Additional Specifications for KMA-3H
- Horizontal Head Travel Up & Down: 25-1/2"
- Dist. Between Horizontal & Vertical Head: 23"
- Horizontal Spindle Taper: NST#50
- Horizontal Spindle Speed: 45-1500 RPM
- Horizontal Head Down Feed ipm: 0-39
- Horizontal Head Rapid Down ipm: 150
- Horizontal Spindle: 5 HP
- Horizontal Head Feed: Servo
Standard Accessories:
- Coolant system
- Auto lube system
- 4 way toggle control of table (KMA-2, KMA-3, KMA-3H)
- Pneumatic power locks on spindle, table and saddle (KMA-3, KMA-3H)
- Variable speed feed rate on table and saddle (KMA-3, KMA-3H)
- Auto lube on vertical slide ways (KMA-3, KMA-3H)
- 5 HP horizontal head, #50 taper spindle (KMA-3H)
- Ball screw and AC servo drive on horizontal head (KMA-3H)
- Tools and Tool Box (1 set)
- Leveling blocks. (6 pcs, KMA-3, 8 pcs)
- Leveling bolts and nuts. (6 sets, KMA-3 8 pcs)
- Draw-in bolt. (1 pcs)
- Forward and reverse spindle control (KMA-2 & KMA-3)
| Item No. | KMA-1 | KMA-2 | KMA-3 KMA-3H |
| Table Travel (longitudinal) | 39" | 47" | 59" |
| Saddle Travel (cross) | 15" | 17-11/16" | 24" |
| Spindle Head Travel | 20" | 22" | 31-1/2" |
| Spindle Nose to Table Top Vertical | 4" - 24" | 4" - 26" | 4" - 35-1/2" |
| Spindle Center to Column Front | 15" | 18" | 22" |
| Table Working Area | 15" x 67" | 18" x 75" | 20" x 87" |
| T-Slot (Wide x No. Pitch) | 0.7" x 5x2 x 3/4" | 0.7" x 5x3 x 3-1/8" | 0.7" x 5x3 x 9/16" |
| Table Top to Floor | 31-1/2" | 33-1/2" | 33-7/8 |
| Vertical Spindle Taper | NST#50 | NST#50 | NST#50 |
| Vertical Spindle Speeds RPM | 45-1,500 | 45-1,500 | 45-1,500 |
| No. of Speeds (Vert. & Horz.) | 12 | 12 | 12 |
| Vertical Head (ipr) | 0.002 - 0.008 | 0.002 - 0.008 | 0.002 - 0.008 |
| Table & Saddle Feeds (ipm) | 1-34 | 1-34 | 0-39 |
| Rapid Traverse (ipm | 113 | 113 | 130 |
| No. of Feeds (steps) | 12 | 12 | Variable |
| Vertical Spindle (HP) | 10 HP | 15 HP | 20 HP |
| Table & Saddle Feed (HP) | 1 HP | 2 HP | 2-1/2 HP |
| Coolant (HP) | 1/8 HP | 1/8 HP | 1/8 HP |
| Machine Height | 87" | 103" | 113" |
| Floor Space L x W | 126" x 79" | 150" x 88" | 175" x 100" |
| Weight approx. lbs. | 9,000 | 11,500 | 15,000 |
