Starrett Dial Test Indicator with Dovetail Mount, EDP 12307 - 3809MAC

Starrett Dial Test Indicator with Dovetail Mount, EDP 12307 - 3809MAC

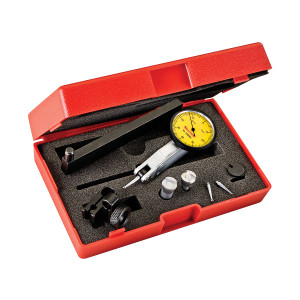

The Starrett 3809 precise, high quality test indicator offers a full complement of standard features. Indicator includes two contact points, two dovetail clamps, swivel post holder, tool post holder, contact wrench and case.

Features

• Three dovetail positioning mounts work with most existing test indicator accessories

• Precision gear-driven design with smooth, jeweled movement

• Contact point reverses automatically, always maintaining clockwise hand rotation

• Contacts are frictionally adjustable and replaceable

• Meets or exceeds ANSI/ASME accuracy specifications

• High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators

• Narrow body for in reach ability

• Satin chrome finish for durability


Specifications

• Range (mm): 0.8mm

• Graduations (mm): 0.01mm

• Dial Reading: 0-40-0

• Attachments: 2mm & 4mm contact points, 9.5mm & 4mm dovetail clamps, 4mm swivel post holder, tool post holder, contact wrench & case

• Dial Color: Yellow 32mm Diameter
