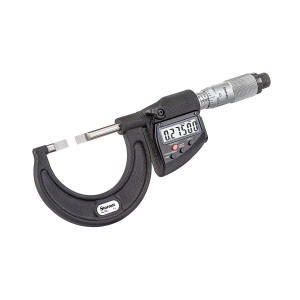

Starrett Electronic Blade-Type Micrometer, 3-4", EDP 72836 - 786.1P-4

Starrett Electronic Blade-Type Micrometer, 3-4", EDP 72836 - 786.1P-4

Digital Blade Type Micrometer, Speeder Thimble, 0.030" Blade Anvil, SPC Output, .00005", 3-4" Range

The Starrett 786.1 Electronic Blade-Type Micrometer with Non-Rotating Spindle With Output is a full-featured precision measuring tool built with customary Starrett quality and workmanship. The 786 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings and a speeder for quicker adjustment on all sizes. The non-rotating spindle prevents blade from turning in narrow slots or rolling off shoulder. Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors or filters out UV light. This product features output capability for data transmission. Starrett electronic micrometers guarantee a precise measurement at every position each and every time. 3-4" Range, .00005" Resolution time.

Features

• Starrett no-glare satin chrome finish on thimble and sleeve

• Large, easy-to-read .275 (7mm) high contrast LCD digital readout

• Attractive no glare black wrinkle finish on the frame

• Auto Off after 20 minutes of nonuse

• Inch/millimeter conversion on English versions

• Smooth friction thimble for uniform pressure

• Measurement HOLD button

• Zero at any position

• Retain and return to true zero reading

• .030 Blade Thickness

• Data Output

• Resolution: .00005" (0.001mm)

• Accuracy +/-.0001 (+/-.002mm)

• PRESET button to install any reading at any position

• Ability to install minimum and maximum limits
• Download 2-Dimensional drawing here

Specifications

• Micrometer Type: Electronic Blade-Type Micrometers with non-rotating spindle

• Range (in): 3-4"

• Range (mm): 76-101mm

• Resolution (in): .00005"

• Resolution (mm): 0.001mm

• Anvil Type: 0.030" Blade

• Spindle Type: 0.030" Blade

• Thimble Type: Speeder

• SPC Output: SPC Output

* Not actual product image
