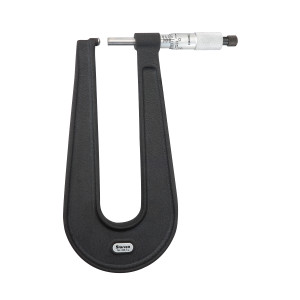

Starrett Sheet Metal Micrometer, 0-1", EDP 50762 - 222AXR-1

Starrett Sheet Metal Micrometer, 0-1", EDP 50762 - 222AXR-1

Sheet Metal Micrometer, Ratchet Thimble, Carbide and Rounded Anvil, 0-1" Range

The Starrett 222 Sheet Metal Micrometer reaches over the edge of sheet metal and takes measurements away from the edge toward the center. Also for other gaging jobs where a deep throat micrometer is needed. Rounded anvil on 1" (25mm) size gives a point contact for more accurate gaging; flat anvil is also available. The 1/2" and 13mm micrometers have satin chrome frames; 1" and 25mm micrometer frames have black wrinkle finish. 1", .001" Grad, Round Anvil, Carbide Anvil & Spindle, Ratchet Stop.

Features

• Rigid one-piece frame of drop forged steel, ribbed for strength and stability

• Extremely hard and stable one-piece spindle

• Micro-lapped measuring face

• Starrett satin chrome finish - no glare - resists rust

• Advanced sleeve design with staggered lines and distinct figures for precise and easy readability

• Combination ratchet and speeder for uniform pressure and quicker adjustment
• Download 2-Dimensional drawing here

Specifications

• Made in America: Yes

• Micrometer Type: Sheet Metal Micrometer

• Range (in): 0-1"

• Graduations (in): .001"

• Anvil/Spindle Material: Carbide

• Anvil Type: Rounded

• Spindle Type: Flat

• Thimble Type: Ratchet
