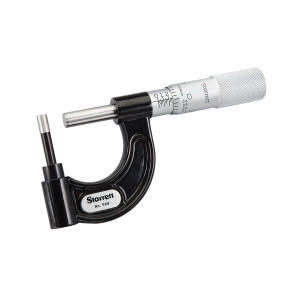

Starrett Tube Micrometer, 0-1", EDP 66437 - 569AXP

Starrett Tube Micrometer, 0-1", EDP 66437 - 569AXP

Tube Micrometer, Carbide and 3/16" Post, 0-1" Range

The Starrett 569 Tube Micrometer is used for measuring the wall thickness of tubing and other parts with cylindrical walls. Also for measuring from a hole to an edge (note minimum hole sizes in table). Rigid steel half frame with smooth black enamel finish. Anvil diameter = 0.185". 0-1" Range, .001" Grad, 3/16" min. hole size, Plain, Carbide Spindle.

Features

• Advanced sleeve design with staggered lines and distinct figures for precise and easy readability

• Balanced frame and thimble design ensure easy handling and better readability

• Starrett satin chrome finish - no glare - resists rust

• Rigid steel frame ribbed for strength and stability

• Extremely hard and stable one-piece spindle

• Micro-lapped measuring faces

Specifications

• Made in America: Yes

• Micrometer Type: Tube Micrometer

• Range (in): 0-1"

• Graduations (in): .001"

• Anvil/Spindle Material: Carbide

• Anvil Type: 3/16" Post

• Spindle Type: Flat

See all Starrett 569 Tube Micrometers
