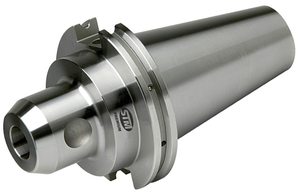

STM CAT40 3/8" x 2.50" End Mill Holder - 525-014
- AD/B DIN coolant through the flange - standard
- Factory balanced to save spindle life, tool life, and increase productivity
- Balanced to G2.5 / 8,000 rpm
- Threaded through-holes for a back-up screw (tool stop) or coolant through when removed
- TIR 0.0002" OD to ID
- Complete with calibration certificate
| Hole Dia. d | Gauge Length L | L1 | D | Set Screw |
| 3/8" | 2.50" | 1.26" | 1.00" | 3/8-24 |
For More STM CAT40 End Mill Holders Click Here
