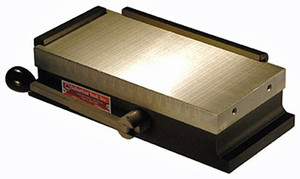

Suburban Magnum-Force Surface Grinder Magnetic Chuck, 20" x 10" x 2-3/4" - DMB-1020

Brand:   Suburban Tool Inc.-Taft Peirce Metrology
SKU:
DMB-1020
ID:
205052
Length 20"
Width 10"
Height 2-3/4"
callling
$7,693.00
Current Stock:
Adding to cart… The item has been added

Suburban Tool

Suburban Magnum-Force Surface Grinder Magnetic Chuck, 20" x 10" x 2-3/4" - DMB-1020

PERMANENT MAGNETIC CHUCK WITH DUAL MAGNETS

L x W x H: 20" x 10" x 2-3/4"

Features:

  • Made with ceramic magnets for superior holding power.
  • Stationary magnets in the top plate and a movable magnet core provide an average holding power of 90-100 pounds per square inch. This is twice the power of a standard chuck.
  • Chucks are lubricated and sealed against dirt and liquids.
  • A rigid work surface is provided by laminated and brazed top plate.
  • These chucks provide maximum holding power of both small & large parts, due to combination fine / standard pole spacing.
  • Low height for more work clearance.
  • Two hold-down clamps, one side rail and one end rail are included.



MODEL # Length
L1
L2 Width
W
Height
H
Weight
DMB-1020 20" 20-3/4" 10" 2-3/4" 125 lbs.


See all Suburban Magnum-Force Surface Grinder Magnetic Chucks
