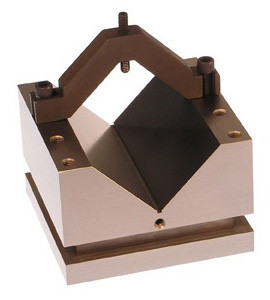

Suburban Precision Steel V-Block, SineSet Compatible, 90 degree, 6" x 6" x 4" - VB-466-S2
Brand: Suburban Tool Inc.-Taft Peirce Metrology- SKU:
- VB-466-S2
- ID:
- 288831
L | 6" |
W | 6" |
H | 4" |
ACROSS VEE | 3-31/32" |
VEE CAPACITY | 4-3/8" |
Weight | 33 lbs. |
$1,049.95
Suburban Precision Steel V-Block
SineSet Compatible
90 degree, 6" x 6" x 4" - VB-466-S2
- Provides a quick, accurate & positive means of holding workpieces for layout, machining, grinding or inspection
- Solid one-piece steel construction, hardened to Rc 58-60
- One reversible, swing-away clamp is provided with each v-block
- Side slots allow easy clamping to almost any work surface
- SineSet® models bolt directly to a SineSet® sine plate or compound sine plate of the same series. S1 models also bolt to the AP-664-S1 90° conversion plate.
- Available in both 60° and 90° models
- Pairs are matched within 0.0003"
Specifications:
90° Models
SineSet® COMPATIBLE | |||||||||
MODEL # | SINGLE or PAIR | SineSet Series | L | W | H | ACROSS VEE | VEE CAPACITY (DIA.) | SQUARE, PARALLEL & CENTRAL | WT (Lbs.) |
VB-466-S2 | SINGLE | S2 | 6" | 6" | 4" | 3-31/32" | 4-3/8" | 0.0003" | 33 |
