Suburban Tool Inc.-Taft Peirce Metrology
Suburban Precision Steel V-Block, SineSet Compatible, 90 degree, 3" x 4" x 3" - VB-334-S1
$399.95
Suburban Precision Steel V-Blocks (Pair), SineSet Compatible, 90 degree, 3" x 4" x 3" - VB-334-M-S1
Brand: Suburban Tool Inc.-Taft Peirce Metrology- SKU:
- VB-334-M-S1
- ID:
- 336195
| L | 3" |
| W | 4" |
| H | 3" |
| ACROSS VEE | 2-7/32" |
| VEE CAPACITY | 2-7/8" |
| Weight | 17 lbs. |
$949.95

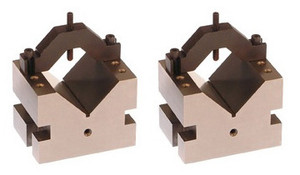

Suburban Precision Steel V-Blocks (Pair)
SineSet Compatible
90 degree, 3" x 4" x 3" - VB-334-M-S1
- Provides a quick, accurate & positive means of holding workpieces for layout, machining, grinding or inspection
- Solid one-piece steel construction, hardened to Rc 58-60
- One reversible, swing-away clamp is provided with each v-block
- Side slots allow easy clamping to almost any work surface
- SineSet® models bolt directly to a SineSet® sine plate or compound sine plate of the same series. S1 models also bolt to the AP-664-S1 90° conversion plate.
- Available in both 60° and 90° models
- Pairs are matched within 0.0003"
Specifications:
90° Models
| SineSet® COMPATIBLE | |||||||||
| MODEL # | SINGLE or PAIR | SineSet Series | L | W | H | ACROSS VEE | VEE CAPACITY (DIA.) | SQUARE, PARALLEL & CENTRAL | WT (Lbs.) |
| VB-334-M-S1 | PAIR | S1 | 3" | 4" | 3" | 2-7/32" | 2-7/8" | 0.0002" | 17 |
