Suburban Rectangular Magnetic Chuck, Standard Pole, 24-1/2" x 8" - MCB-824

Brand:   Suburban Tool Inc.-Taft Peirce Metrology
SKU:
MCB-824
ID:
105146
Pole Spacing Standard
Length 24-1/2"
Width 8"
Height 2-5/8"
callling
$3,838.00
Current Stock:
Adding to cart… The item has been added

Suburban Tool

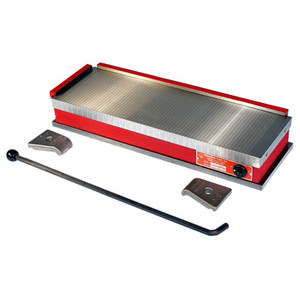

Suburban Rectangular Magnetic Chuck MCB-824
Standard Pole, 24-1/2" x 8" x 2-5/8"

Permanent Magnetic Surface Grinder Chucks


STANDARD POLE: 1/4" poles and 1/8" separators produce deep flux lines for holding large and thick parts.

FINE POLE (marked -FP): 1/8" poles and 1/8" separators produce shallow flux lines for holding small and thin parts.

Features:

  • Made in U.S.A.
  • Ideal for use on surface grinders.
  • Permanent, ceramic magnets for superior holding power, never lose their strength.
  • Sealed against dirt and liquids.
  • Front-mounted handle is removable to eliminate interference.
  • Handle, back rail, side rail and two clamps included.
  • 8" x 15" models & larger have a non-removable handle.
  • Top plate is laminated from steel and stainless steel, furnace brazed into one solid piece and precision ground.
  • All models are lubricated, sealed against dirt and liquids.
  • The smaller units can be used as Parallel Chucks on top of any regular magnetic machine chuck.
  • "Partial-On" for holding parts prone to distortion.
  • One end rail and one backrail plus 2 universal hold-down clamps included.
  • Standard Pole Spacing for holding large and thick workpieces.
  • Fine Pole Spacing for holding thin workpieces.

Specifications:

MODEL # POLE SPACING LENGTH WIDTH HEIGHT WEIGHT
MCB-824 STANDARD 24-1/2" 8" 2-5/8" 126 lbs.


See all Suburban Rectangular Magnetic Chucks
