Suburban Rotary Vane Vacuum Pump, 1/4 HP Single Phase VCP-14-MM - 77-176-6

Brand:   Suburban Tool Inc.-Taft Peirce Metrology
SKU:
77-176-6
ID:
95039
$1,733.00
Current Stock:
Adding to cart… The item has been added

Suburban Tool

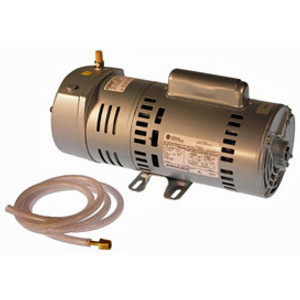

Suburban Rotary Vane Vacuum Pump, 1/4 HP Single Phase VCP-14-MM

1/4 HP, 110-115/208-230V, 50-60 Hz, 1 Phase

  • All models are the oilless, motor-mount, rotary vane design for maximum performance with minimum upkeep.
  • Each unit has internal mufflers and filters. The filters were specifically designed to be easily removed and replaced.
  • The pumps have built-in thermal overload protection.
  • Each model includes a support base, the proper fittings and six feet of reinforced hose.

NOTE: Because electric motors are dual frequency, multi-voltage AC for worldwide applications, they are supplied without an electric cord, ready to be wired to user specifications.

Specifications:

Model VCP-14-MM
Electric Motor 1/4 HP, 110-115/208-230V, 50-60 Hz, 1 Phase
CFM Free Air - at 0" Hg 4.5
CFM Free Air - at 10" Hg 2.6
CFM Free Air - at 20" Hg 1.0
Maximum Vacuum 10 PSI
Weight 32 lbs.


For use with Suburban Tool Sine System Bolt-On Vacuum Chucks
