Suburban Slotted Angle Plates
- Made from class 35-40 cast iron
- Multiple clamping slots for easy mounting of workpieces

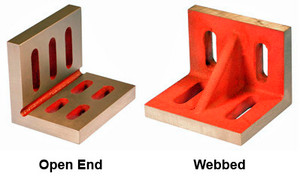

- Webbed type - 2 working faces and all ends machined square and parallel within 0.002 per 6"
- Open end type - 4 working faces and all ends machined square and parallel within 0.002" per 6"
- Also available ground with two working faces square within 0.0005" per 6"
Specifications:
View the Specifications Tables
Enter any Item Number below into the search box to see additional specifications.
WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.
For more info, visit www.p65warnings.ca.gov.
Suburban Slotted Angle Plates
Suburban Slotted Angle Plates
| Item Number | Description | Price | Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|
| SAO-100806-G | Slotted Angle Plate | Open End | Ground | 10" | 8" | 6" | 33 lbs. | $ 796.00 | |
| SAO-120908-G | Slotted Angle Plate | Open End | Ground | 12" | 9" | 8" | 62 lbs. | $ 1,359.25 | |
| SAO-040303-G | Slotted Angle Plate | Open End | Ground | 4-1/2" | 3-1/2" | 3" | 4 lbs. | $ 220.00 | |
| SAO-060504-G | Slotted Angle Plate | Open End | Ground | 6" | 5" | 4-1/2" | 12 lbs. | $ 303.00 | |
| SAO-070504-G | Slotted Angle Plate | Open End | Ground | 7" | 5-1/2" | 4-1/2" | 14 lbs. | $ 355.00 | |
| SAO-080605-G | Slotted Angle Plate | Open End | Ground | 8" | 6" | 5" | 20 lbs. | $ 414.00 | |
| SAO-090706-G | Slotted Angle Plate | Open End | Ground | 9" | 7" | 6" | 24 lbs. | $ 513.00 | |
| SAO-100806 | Slotted Angle Plate | Open End | Machined | 10" | 8" | 6" | 33 lbs. | $ 462.00 | |
| SAO-120908 | Slotted Angle Plate | Open End | Machined | 12" | 9" | 8" | 62 lbs. | $ 653.00 | |
| SAO-040303 | Slotted Angle Plate | Open End | Machined | 4-1/2" | 3-1/2" | 3" | 4 lbs. | $ 158.00 | |
| SAO-060504 | Slotted Angle Plate | Open End | Machined | 6" | 5" | 4-1/2" | 12 lbs. | $ 218.00 | |
| SAO-070504 | Slotted Angle Plate | Open End | Machined | 7" | 5-1/2" | 4-1/2" | 14 lbs. | $ 257.00 | |
| SAO-080605 | Slotted Angle Plate | Open End | Machined | 8" | 6" | 5" | 20 lbs. | $ 303.00 | |
| SAO-090706 | Slotted Angle Plate | Open End | Machined | 9" | 7" | 6" | 24 lbs. | $ 376.00 | |
| SAW-100806-G | Slotted Angle Plate | Webbed | Ground | 10" | 8" | 6" | 37 lbs. | $ 734.00 | |
| SAW-120908-G | Slotted Angle Plate | Webbed | Ground | 12" | 9" | 8" | 63 lbs. | $ 1,295.00 | |
| SAW-030302-G | Slotted Angle Plate | Webbed | Ground | 3-1/2" | 3" | 2-1/2" | 4 lbs. | $ 238.00 | |
| SAW-040303-G | Slotted Angle Plate | Webbed | Ground | 4-1/2" | 3-1/2" | 3" | 5 lbs. | $ 242.00 | |
| SAW-060504-G | Slotted Angle Plate | Webbed | Ground | 6" | 5" | 4-1/2" | 13 lbs. | $ 302.00 | |
| SAW-070504-G | Slotted Angle Plate | Webbed | Ground | 7" | 5-1/2" | 4-1/2" | 14 lbs. | $ 431.00 | |
| SAW-080605-G | Slotted Angle Plate | Webbed | Finish | 8" | 6" | 5" | 22 lbs. | $ 579.95 | |
| SAW-090706-G | Slotted Angle Plate | Webbed | Ground | 9" | 7" | 6" | 28 lbs. | $ 660.00 | |
| SAW-100806 | Slotted Angle Plate | Webbed | Machined | 10" | 8" | 6" | 37 lbs. | $ 384.00 | |
| SAW-120908 | Slotted Angle Plate | Webbed | Machined | 12" | 9" | 8" | 63 lbs. | $ 586.00 | |
| SAW-030302 | Slotted Angle Plate | Webbed | Machined | 3-1/2" | 3" | 2-1/2" | 4 lbs. | $ 117.00 | |
| SAW-040303 | Slotted Angle Plate | Webbed | Machined | 4-1/2" | 3-1/2" | 3" | 5 lbs. | $ 119.00 | |
| SAW-060504 | Slotted Angle Plate | Webbed | Machined | 6" | 5" | 4-1/2" | 13 lbs. | $ 158.00 | |
| SAW-070504 | Slotted Angle Plate | Webbed | Machined | 7" | 5-1/2" | 4-1/2" | 14 lbs. | $ 215.00 | |
| SAW-080605 | Slotted Angle Plate | Webbed | Machined | 8" | 6" | 5" | 22 lbs. | $ 263.00 | |
| SAW-090706 | Slotted Angle Plate | Webbed | Machined | 9" | 7" | 6" | 28 lbs. | $ 660.00 |
