Suburban Tool Compound Sine Plate SPC-44-S0, 4" x 4" x 3-1/8" - 77-071-9

Brand: Suburban Tool Inc.-Taft Peirce Metrology

SKU:

77-071-9

ID:

94313

UPC:

662619004031

$1,197.44

Current Stock:

Adding to cart… The item has been added

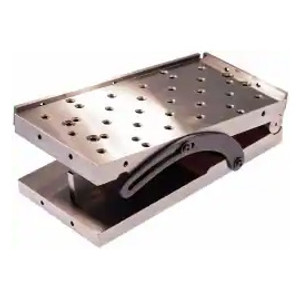

Suburban Tool Compound Sine Plate SPC-44-S0
4" x 4" x 3-1/8"

4" Long x 4" Wide x 3-1/8" High
Compound Precision Steel Sine Plate
Square to within 0.0002", 0.0002" (C1), 0.0002" (C2) Tolerance, 3/8-16 Hole

Features:

Made of steel, hardened to Rc 58-60.
Sizes up to 6" x 6" have 1/4-20 tapped holes. Larger sizes have 3/8-16 tapped holes.
Part of the SineSet® System. Other products with the same part # suffix will bolt directly to these compound sine plates
Each gage block roll has two 0.200" minute steps for setting small angles with standard gage block sets.
Two locking straps that always remains below the top surface and two hardened & ground rails are standard.

Specifications:

MODEL #	SineSet Series	L	W	H	C1	C2	SQUARE & PARALLEL	WT
SPC-44-S0	S0	4"	4"	3-1/8"	3" ±0.0002"	3" ±0.0002"	0.0002"	12

Precision	Yes
Compound	Yes
Length (Inch)	4
Width (Inch)	4
Height (Inch)	3-1/8
Sine Series	S0
Material	Steel
Hole Size	3/8-16
Roll Centerline Distance (Inch)	3 (C1); 3 (C2)
Parallelism (Decimal Inch)	0.0002
Squareness (Decimal Inch)	0.0002
Tolerance (Decimal Inch)	0.0002 (C1); 0.0002 (C2)
Minute Angle Step (Decimal Inch)	0.2000
UPC #	662619004031
