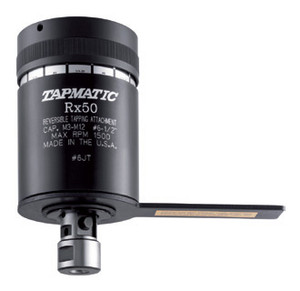

Tapmatic RX Series Self-Reversing Tapping Attachments
High production self-reversing tapping attachments with high-speed reverse and pre-selective torque control.
Features:
- For hard to machine material and high torque applications like roll form tapping
- Less tap breakage due to pre-selective torque control
- Reduced cycle time through increased 1.75 :1 reverse speed
- Easy handling, compact design
- Easy adaptation with multiple interchangeable arbors
Dimensions:
| Model | D mm | d mm | Self-feed mm T | Weight kg |
| RX30 | 53 | 19 | 3 | 0.7 |
| RX50 | 76 | 27 | 5 | 1.8 |
| RX70 | 88 | 36 | 7 | 3 |
Specifications:
| Model | Item Number | Capacity (Steel) | Collets Rubber Flex | Max. RPM | Mounts S | L | |
| Taper Mounts | Thread Mounts | ||||||
| RX30 | 013006 | M1.4 - M7 #0 - 1/4" | 21600 21700 | 2000 | JT6 | 116 | |
| 013016 | B16 | ||||||
| 013033 | JT33 | ||||||
| 013037 | 3/8"-24 | ||||||
| 013050 | 1/2"-20 | ||||||
| Model | Item Number | Capacity (Steel) | Collets Rubber Flex | Max. RPM | Mounts S | L | |
| Taper Mounts | Thread Mounts | ||||||
| RX50 | 015006 | M3 - M12 #6 - 1/2" | 22100 22200 | 1500 | JT6 | 157 | |
| 015016 | B16 | ||||||
| 015033 | JT33 | ||||||
| 015050 | 1/2"-20 | ||||||
| Model | Item Number | Capacity (Steel) | Collets Rubber Flex | Max. RPM | Mounts S | L | |
| Taper Mounts | Thread Mounts | ||||||
| RX70 | 017003 | M5 - M18 #10 - 3/4" | 24100 24500 | 1200 | JT3 | 182 | |
| 017050 | 1/2"-20 | ||||||
| 017087 | 7/8"-20 | ||||||
