The Ultimate Engineering Screw Chart - ENG-CHART1

The Ultimate Engineering Screw Chart  - ENG-CHART1

Features:

• Great Innovations’ Screw Chart includes technical information from many of the quick references that are commonly found in the work areas of designers, engineers, and machinists.
• All of this information is compiled for both English (Imperial) and Metric systems in a single screw chart.
• Screw Chart Overall Size: 8.75 X 11 X .06 inches (222 X 280 X 1.5 mm)
• Material: Heavy Duty Plastic covered with a protective film

Standards

Metric:

• When possible, follows the DIM Standard.
• All dimensions are maximum.

Imperial:

• Unless otherwise noted, all screw data is per ASA B18.6.3
• All dimensions are maximum.
• Hex Cap Screws from 1/4" through 1" are per ASA B18.2.1
• Hex & Jam Nuts are per ASA B18.2.1
• Hex Nuts from 1/4" through 1" are per ASA B8.2.2
• Socket and Button Head Cap Screws, Shoulder Screws, and Setscrew Points are per ASA B18.3.
• Flat (Regular) & Split Lock Washers per ANSI/ASME B18.22.1 & B18.21.1.
• Nylon-Insert Lock Nuts per ASME B18.16.6.

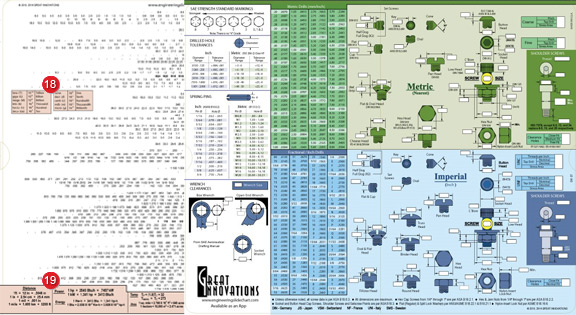

Front:

1. Bolt Grades
2. Drilled Hole Tolerances Engineering Slide Charts (Inch & Metric)
3. Spring Pins (Inch & Metric)
4. Wrench Clearances (Inch)
5. Metric Drill Sizes
6. Allen Key Sizes for Metric Engineering Slide Charts Screws
7. Metric Screws - Nearest to Engineering Slide Charts Imperial (Inch) size
8. C'Bore Sizes for Metric Engineering Slide Charts Socket Head Cap Screws
9. Tap, Drill, and Stress Area Engineering Slide Charts for Metric Screws
10. Metric Shoulder Screws
11. Fractional (Inch) Drill Sizes
12. Allen Key Sizes for Imperial Engineering Slide Charts (Inch) Screws
13. Tap, Drill, and Stress Area Engineering Slide Charts for Imperial (Inch) Screws
14. Imperial (Inch) Screws
15. C'Bore for Imperial (Inch) Engineering Slide Charts Socket Head Cap Screws
16. Imperial (Inch) Shoulder Engineering Slide Charts Screws
17. Imperial (Inch) and Metric Engineering Slide Charts Clearance Holes
18. Prefixes
19. Unit Conversions

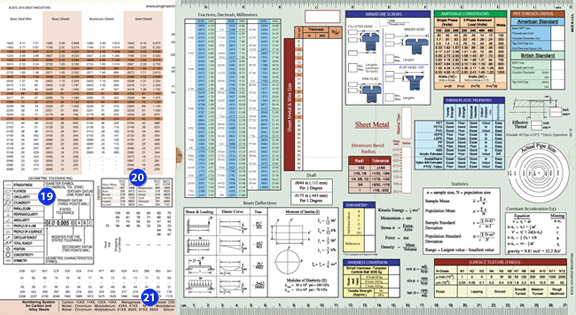

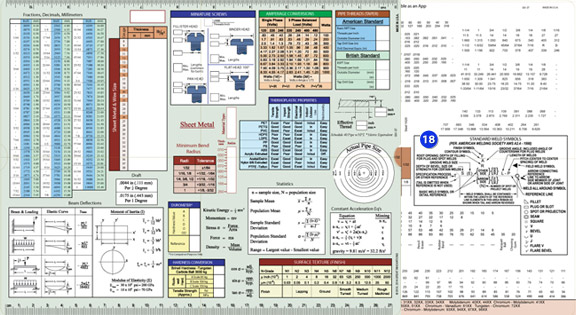

Back:

1. Ruler (Inches)
2. Fractions to Millimeters to Decimal
3. Sheet Metal
4. Miniature Screws
5. Amperage Conversion & Engineering Slide Charts Basic Electrical Equations
6. Pipe Threads (Metric & Engineering Slide Charts English/Imperial)
7. Beam Deflections
8. Drafts (per linear Inch)
9. Thermoplastic Properties
10. Actual Pipe Size
11. Shore Durometer
12. Hardness to Tensile Engineering Slide Charts Conversion
13. General Equations
14. Statistics
15. Constant Acceleration Engineering Slide Charts Equations
16. Surface Finish/Surface Engineering Slide Charts Texture
17. Ruler (Metric)
18. Weld Symbols
19. Geometric Dimensioning and Engineering Slide Charts Tolerances (GD&T)
20. Densities of Common Engineering Slide Charts Materials
21. Numbering System for Engineering Slide Charts Carbon and Alloy Steels
