TMX 3-Jaw Type D Direct Mount Scroll Chuck, 10in D1-8 - 3-823-1038P
Brand: TMX- SKU:
- 3-823-1038P
- ID:
- 357036
| Chuck Size | 10" |
| Taper Size | D1-8 |
| Gripping Force | 4600 daN |
| Max RPM | 3500 RPM |
| Weight | 88 lbs. |
$2,195.00

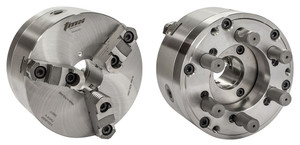

TMX 3-Jaw Type D Direct Mount Scroll Chuck, 10in D1-8
3-823-1038P
3-Jaw (2Pc) Scroll Forged Steel 10in D1-8
3-Jaw Precision Forged Steel Body Scroll Chuck with Two-Piece Hard Reversible Jaws, Camlock D, 10in D1-8
TMX by Toolmex MADE IN EUROPE
(Compare to Bison® Models 3245 & 3545 - Series 7-803 & 7-823)
Features:
- Type D Direct Mount – No need for machining, no backplate required
- All forged steel bodies are hardened to 28 HRC providing improved durability and rigidity
- All bearing surfaces are carefully hardened and machined at high tolerances. Each scroll is balanced.
- 2 piece Hard Reversible American Standard Tongue and Groove jaws are made of high quality alloy steel then hardened
- Made in Europe
Standard Accessories:
- 1 Set of hard master jaws
- 1 Set of hard top reversible jaws
- 1 Chuck wrench
- 1 Set of mounting bolts
- Eye bolts for chuck sizes 16" and larger
Optional Accessories:
- Soft Top Jaws
- Camlock Studs for D Mount
Technical Data:
| Selling Unit | EA | |
| Chuck Type | Scroll | |
| Chuck Size | in | 10 |
| Body Material | Forged Steel | |
| Number of Jaws | 3 | |
| Jaw Type | 2pc | |
| Weight | lb | 88 |
| Taper Size | D1-8 | |
| Gripping Force | daN | 4600 |
| Max RPM | RPM | 3500 |
| Camlock Stud Diameter |
in | 1 |
| Camlock Stud Quantity |
6 | |
| Camlock Stud Thread |
M20x1.5 |
| Diameter D | in | 9.843 |
| Recess Diameter B | in | 5.5007 |
| Hole Diameter E | in | 2.9921 |
| Stud Circle Diameter F | in | 6.748 |
| Body Height H | in | 4.7047 |
| Jaw Height H1 (Two-piece Jaws) |
in | 2.051 |
| d1 Two-Piece Jaws | in | 0.197 - 4.65 |
| d2 Two-Piece Jaws | in | 3.39 - 7.76 |
| d3 Two-Piece Jaws | in | 6.30 - 9.84 |
| d4 Two-Piece Jaws | in | 2.28 - 6.50 |
| d5 Two-Piece Jaws | in | 4.92 - 9.25 |
