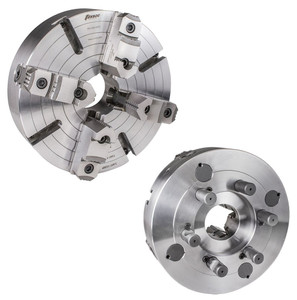

TMX 4-Jaw Type D Direct Mount Independent Lathe Chuck, 25" D1-11, 6.3" Hole - 3-857-2539P
Brand: TMX- SKU:
- 3-857-2539P
- ID:
- 363853
| Chuck Size | 25" |
| Mount | D1-11 |
| Hole | 6.3" |
| Max RPM | 550 RPM |
| Weight | 633 lbs. |
$10,295.00
TMX 4-Jaw Type D Direct Mount Independent Lathe Chuck, 25" D1-11, 6.3" Hole - 3-857-2539P
4-Jaw (2Pc) Independent Forged Steel Body Chuck
25" D-11, 6.3" Hole
TMX by Toolmex, MADE IN EUROPE
Technical Data:
 |
| Selling Unit | EA | |
| Chuck Type | Independent | |
| Chuck Size | in | 25 |
| Body Material | Forged Steel | |
| Number of Jaws | 4 | |
| Jaw Type | 2pc | |
| Weight | lb | 633 |
| Mount | D1-11 | |
| Max RPM | RPM | 550 |
| Camlock Stud Diameter | in | 1-3/16 |
| Camlock Stud Quantity | 6 | |
| Camlock Stud Thread | M22x1.5 |
| d1 Two-Piece Jaws | in | 1.969 |
| d2 Two-Piece Jaws | in | 24.803 |
 |
| Diameter D | in | 24.803 |
| Recess Diameter B | in | 7.751 |
| Hole Diameter E | in | 6.299 |
| Stud Circle Diameter F | in | 9.252 |
| Body Height H | in | 5.000 |
| Jaw Height L1 (Two-piece Jaws) | in | 3.425 |
