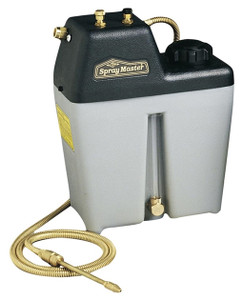

Trico SprayMaster Mist Coolant Systems
1 Gallon
Spraymaster Coolant Systems provide convenient spray cooling in metal cutting operations. Requiring only compressed air as a power source, these units are easily installed in many machining applications.
The Spraymaster is designed for use with Tri-Cool Coolant. Various mixtures of coolant to water may be used depending upon individual requirements.
Stainless steel reservoir versions are available with the same performance features as the standard Spraymaster.
Spray Coolant System:
- Acrylic plastic sight, brass valves and fittings, buna-N o-ring, polyurethane coolant tube, 40 x 40 mesh stainless steel filter
- Includes an easy to mount bracket for permanent attachment to the machine tool
- Nozzle designed so atomization takes place at nozzle tip an instant before delivery, eliminating sputtering and enhancing pattern control
- Operates on 50 - 100 PSI inlet pressure
- An easy to read liquid level gauge indicates spray coolant level at a glance
- Air and coolant are independently controlled by solid brass precision needle valves
- Lifetime warranty on manufacturing defects
Features:
- Air and coolant are independently controlled by solid brass precision needle valves.
- 6" straight brass nozzle is designed so atomization takes place at nozzle tip for enhanced pattern control
- Brass armored lines are a standard 5' length.
- Mounting brackets included for easy installation.
- Provide maximum flexibility.
Specifications:
| MODEL # | 30542 | 30543 |
| NO. OF LINES | 1 | 2 |
| CAPACITY | 1 Gallon | 1 Gallon |
| TYPE | Misting Coolant System | Misting Coolant System |
| LENGTH OF LINE | 5' | 5' |
| WEIGHT | 7.5 lbs. | 8.5 lbs. |
| COUNTRY OF ORIGIN | UNITED STATES OF AMERICA | UNITED STATES OF AMERICA |
