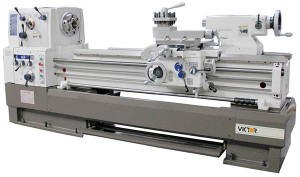

Victor 2000S Series Precision Heavy Duty Lathes
Extra large rigid compound rest and Meehanite casting bed provide excellent stability and consistency during machining. Large 3-1/8" spindle bore and 10 HP main motor are sufficient for high demanding jobs.
Features:
- Oversized rigid compound rest for heavy cutting
- Hardened and precision ground gears and bedways
- Hardened and ground spindle nose
- Full Meehanite casting bed
- Headstock transmission gears driven by spline shafts
- The spindle is supported at 3 points by precision bearings
- Safety overload device
- Inch/metric threading without changing gears
- 10 HP main motor delivers full power at all 12 speeds
- Dual speed tailstock quill (ratio 1:1 and 1:5) provides easy drilling operation
Standard Accessories:
- Removable gap
- Tailstock
- Coolant system
- Chuck cover with limit switch
- Full length foot brake
- D.P. / module thread change gears
- Threading dial indicator
- Center sleeve
- Dead center M.T. #5
- Leveling screws and pads
- Manual and parts list
| Swing over bed | 20" |
| Swing over cross slide | 13" |
| Swing over gap | 26-3/8" |
| Bed width | 15-3/4" |
| Spindle bore diameter | 3.13" |
| Spindle bore taper | M.T. #7 |
| Taper of center in sleeve | M.T. #5 |
| Spindle nose | D1-8 |
| Number of spindle speeds | 12 Steps |
| Range of spindle speeds | 20 ~ 1,550 rpm |
| Speed selections | 20, 30, 45, 60, 100, 150, 210, 350, 490, 680, 1100, 1550 |
| Range of longitudinal feeds | 0.0014" ~ 0.0387"/rev. |
| Range of cross feeds | 0.0007" ~ 0.01935"/rev. |
| Inch threads | 2 ~ 112 TPI x 60 kinds |
| Metric threads | 0.2 ~ 14 mm x 60 kinds |
| Cross slide travel | 12-1/2" |
| Compound slide travel | 10" |
| Tailstock taper center | M.T. #5 |
| Tailstock quill travel | 6-5/16" |
| Main motor | 10 HP 3 Phase |
| Coolant pump | 1/8 HP |
