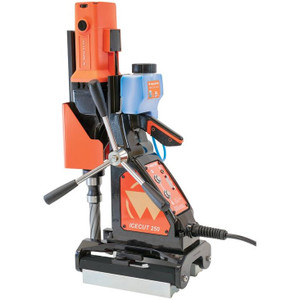

Walter Surface Technologies ICECUT™ 250P Magnetic Drilling Unit for Pipes and Curved Surfaces 251A - 39D251

Walter Surface Technologies ICECUT™ 250P Magnetic Drilling Unit for Pipes and Curved Surfaces 251A - 39D251

ICECUT™ 250P
Magnetic drilling unit for pipes and curved surfaces

The powerful and versatile ICECUT™ 250P sets up fast and is uniquely designed make short work of pipe-related jobs with the added safety and convenience of permanent pivoting magnets.

Features:

• Dynamax™ variable speed control
• Powerful 2-speed motor
• Drill range: 100-500 RPM
• Accudrill™ LED torque display
• Reversible speed for tapping holes
• Drilling capacity of 3"
• 2 permanent pivoting (electro and standard) magnets
• Use on material as thin as 1/8"

When you pair the best drilling machines with the ultimate annular cutters and most innovative cooling solutions, you know you have the best system to drill large holes precisely, quickly & to continue performing even after thousands of holes.

CENTERED CONTROL PANEL:

• Centered positionning of the electronics for easy control from any position. Whether it’s a personal preference, or if the operation requires drilling from a specific side, the central control panel allows for efficient and easy operating.

MANDREL SUPPORT:

• Absorbs vibrations for added stability and perfect centering. This ball bearing support ensures the motor and chuck are perfectly aligned. It also provides smooth and precise cutting operations, and reduces chipping or breakage of the cutter.

FULL BODY INTEGRATED WIRING:

• For convenience and greatest durability. No electrical wires will get in the way while drilling or moving your unit. Moreover, this prevents common failures due to mishandling (like carrying the unit by the wire, or the wire catching on an object).

STEEL SLIDING GUARD:

• Easily accessible, and extra safe. Slide guard upwards, position unit, slide guard down and start drilling safely and without having chips and lubricant all over!

DIRECT ACCESS:

• Direct access to carbon brushes makes maintenance simple. The powerful motor will always operate at maximum efficiency, and when it comes time to change its carbon brushes, their location and the smart design make maintenance very convenient!

ERGONOMIC HANDLE:

• Ergonomic handle with smooth grip – sturdy and lightweight – makes moving easy. Its design further reduces overall weight, and the smooth grip guarantees easy carrying and positioning of the unit.

QUICK RELEASE REVERSIBLE HANDLE:

• Quick release reversible handle – allows for positioning in confined or restricted spaces, or simply for convenience.

MATERIAL & THICKNESS DETECTOR:

• Unit will not start when the magnetic holding power is insufficient to secure the unit to the workpiece and operate safely. Prevents accidental starts: unit will not start on any non-ferrous material like wood, plastic, or when held in the air.

ACCUDRILL SYSTEM:

• Protects against overload and reduces risk of cutter breakage. When you want to achieve the most productive drilling operation, you need to make sure you use the most power. This prevents from overloading the motor to reduce damage or the eventual risk of damaging the cutter from overheating or movement.

View the Product Sheet

View the User Manual

View the Parts List

Specifications:
