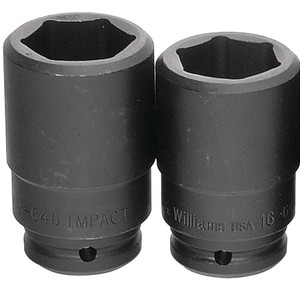

Williams Industrial Tools 3/4" Drive SAE 1-13/16" Impact Deep Socket - JHW16-658
Brand: Williams Industrial Tools- SKU:
- JHW16-658
- ID:
- 800609
$76.96
Williams Industrial Tools 3/4" Drive SAE 1-13/16" Impact Deep Socket - JHW16-658
SuperTorque lobular openings for greater turning power without deforming the fastener
Designed for maximum engagement on 6 point fasteners
Suitable for use with pneumatic and electric impact wrenches
Specially heat treated for impact use to provide long life, safety, and durability
Features & Benefits:
- SuperTorque lobular openings for greater turning power without deforming the fastener
- Designed for maximum engagement on 6 point fasteners
- Suitable for use with pneumatic and electric impact wrenches
- Specially heat treated for impact use to provide long life, safety, and durability
View the Dimensional Drawing
Specifications:
| SKU | JHW16-658 |
| Size, inches | 1-13/16 |
| Dimension A, Overall Length, inches | 3-3/4 |
| Dimension B, Drive End Diameter, inches | 1-3/4 |
| Dimension C, Working End Diameter, inches | 2-5/8 |
| Dimension D, Broach Depth, inches | 1-1/16 |
| Dimension E, Bolt Clearance Depth, inches | 2-3/4 |
| Bolt Clearance Diameter, inches | 1-13/16 |
| Dimension F, Nose Length, inches | 2-25/32 |
| Uses RET RING® Number | 6-1XS |
| Use O-Ring/Pin | 6-1A/6-2C |
| Drive Size, inches | 3/4 |
| Number of points | 6 |
| System of Measurement | SAE |
| Primary Material | Steel |
| Finish | Black Industrial |
| ANSI Number | B107.2 |
| Warranty Information | Limited warranty; free from defects in workmanship and materials |
