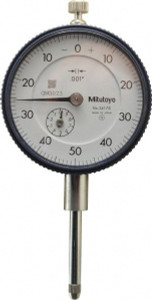

Mitutoyo Dial Drop Indicator: 1" Range, 0-50-0 Dial Reading, 0.001" Graduation, 2-1/4" Dial Dia 0.1" per Revolution, Lug Back, 0.002000" Accuracy, Revolution Counter 2417A - 06255616
Brand: Mitutoyo- SKU:
- 06255616
- ID:
- 794071
$176.47
Mitutoyo Dial Drop Indicator: 1" Range, 0-50-0 Dial Reading, 0.001" Graduation, 2-1/4" Dial Dia 0.1" per Revolution, Lug Back, 0.002000" Accuracy, Revolution Counter
Manufacturer Part #: 2417A
S/N: 06255616
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Accuracy (Decimal Inch) | 0.002000 |
| Back Type | Lug |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Maximum Measurement (Inch) | 1 |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Dial Reading | 0-50-0 |
| Measuring Force (N) | 1.80 |
| Dial Diameter (Inch) | 2-1/4 |
| Dial Diameter (mm) | 57.15 |
| Stem Diameter (Decimal Inch) | 0.3750 |
| Stem Length (mm) | 13.60 |
| Overall Length (mm) | 115.70 |
| Dial Color | White |
| Thread Size | #4-48 |
| Revolution Counter | Yes |
| Standards | ANSI/AGD |
| AGDGpNo | 2 |
| Range Per Revolution (Decimal Inch) | 0.1000 |
| Unit of Measure | English |
