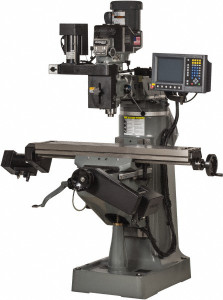

Bridgeport CNC Milling Machine: 9 x 49" Table, 3 Phase, Bridgeport Variable Speed Pulley Control, R8 Taper, 36" Longitudinal Travel, 12" Cross Travel, 3 hp 948BPT3AXMILPWR - 07116171
Brand: Bridgeport Milling Machine- SKU:
- 07116171
- ID:
- 872011
$74,734.17
Bridgeport Milling Machine CNC Milling Machine: 9 x 49" Table, 3 Phase, Bridgeport Variable Speed Pulley Control, R8 Taper, 36" Longitudinal Travel, 12" Cross Travel, 3 hp
Manufacturer Part #: 948BPT3AXMILPWR
S/N: 07116171
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| CNC Controller Brand | Bridgeport |
| CNC Controller Model | Millpower |
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Decimal Inch) | 48.0000 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Phase | 3 |
| Longitudinal Travel (Inch) | 36 |
| Longitudinal Travel (Decimal Inch) | 36.0000 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Knee Travel (Inch) | 16 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Minimum Spindle Speed | 60RPM |
| Maximum Spindle Speed | 4200RPM |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | R8 |
| Quill Diameter (Inch) | 3-3/8 |
| Maximum Spindle to Table Distance (Inch) | 18-1/4 |
| Number Of T-slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90 |
| Backward Head Tilt (Degrees) | 40 |
| Forward Head Tilt (Degrees) | 45 |
| Ram Travel Length (Decimal Inch) | 12.0000 |
| Ram Travel Length (Inch) | 12 |
| Positioning Accuracy (Decimal Inch) | 0.0008 |
| Positioning Repeatability (Decimal Inch) | 0.0005 |
| Voltage | 220, 440 |
| Horsepower | 3.00 |
| Overall Height (Inch) | 81-5/8 |
| Includes | Acu-Rite MILLPWR G2 Controller (MSC 92499730) |
| Spindle Power Feed Rate Per Minute (mm) | 100 (Z-Axis) (Max) |
| Table Load Capacity (Lb.) | 750.00 |
| Table Width/Diameter (Decimal Inch) | 9.0000 |
