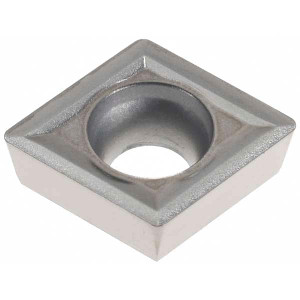

Hertel CPGT21.51 HT115CR Cermet Turning Insert Uncoated, Neutral, 6mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond 8851965 - 07577885
Brand: Hertel- SKU:
- 07577885
- ID:
- 669638
$16.68
Hertel CPGT21.51 HT115CR Cermet Turning Insert Uncoated, Neutral, 6mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond
Manufacturer Part #: 8851965
S/N: 07577885
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 11 |
| Insert Style | CPGT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80.0 |
| Manufacturer Grade | HT115CR |
| Coating/Finish | Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Cermet |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.79 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | G |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (mm) | 6.00 |
| Insert Length (Decimal Inch) | 0.2362 |
| Chip Breaker | T |
| Style | CPGT21.51 |
| Insert Size Code | 21.51 |
