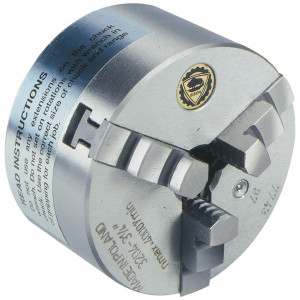

Bison 3 Jaws, 6" Diam, Self Centering Manual Lathe Chuck Plain Back Mount Spindle, 3,000 Max RPM, 1.6535" Through Hole Diam, 0.0008" Axial Runout, 0.0012" Radial Runout, Cast Iron 7-810-0600 - 08550063
Brand: Bison- SKU:
- 08550063
- ID:
- 450776
$864.13
Bison 3 Jaws, 6" Diam, Self Centering Manual Lathe Chuck Plain Back Mount Spindle, 3,000 Max RPM, 1.6535" Through Hole Diam, 0.0008" Axial Runout, 0.0012" Radial Runout, Cast Iron
Manufacturer Part #: 7-810-0600
S/N: 08550063
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Chuck Type | Self-Centering |
| Chuck Diameter (Inch) | 6-1/4 |
| Number Of Jaws | 3 |
| Mount Type | Plain Back |
| Body Material | Cast Iron |
| Adjustable | No |
| Reversible Jaws | Non-Reversible |
| Maximum Jaw Capacity (Inch) | 6.0600 |
| Maximum Rpm | 3000 |
| Jaw Type | Solid |
| Axial Runout (Decimal Inch) | 0.0008 |
| Radial Runout (Decimal Inch) | 0.0012 |
| Body Length (Decimal Inch) | 2.5390 |
| Material | Cast Iron |
| Contents | (2) Hex Keys, Chuck Wrench, Eye Bolts (Chuck Size 15-3/4 in & Larger), Set of Hard Solid External Jaws, Set of Hard Solid Internal Jaws, Set of Mounting Bolts |
| Minimum Jaw Capacity (Inch) | 0.1180 |
| Through-Hole Diameter (Decimal Inch) | 1.6535 |
