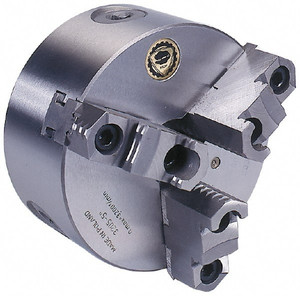

Bison 3 Jaws, 16" Diam, Self Centering Manual Lathe Chuck A2-8 Mount Spindle, Reversible, 1,000 Max RPM, 5.3543" Through Hole Diam, 0.0012" Axial Runout, 0.0024" Radial Runout, Cast Iron 7-801-1618 - 08598377
Brand: Bison- SKU:
- 08598377
- ID:
- 450853
$6,929.00
Bison 3 Jaws, 16" Diam, Self Centering Manual Lathe Chuck A2-8 Mount Spindle, Reversible, 1,000 Max RPM, 5.3543" Through Hole Diam, 0.0012" Axial Runout, 0.0024" Radial Runout, Cast Iron
Manufacturer Part #: 7-801-1618
S/N: 08598377
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Chuck Type | Self-Centering |
| Chuck Diameter (Inch) | 15-3/4 |
| Number Of Jaws | 3 |
| Body Material | Cast Iron |
| Adjustable | No |
| Reversible Jaws | Reversible |
| Maximum Jaw Capacity (Inch) | 12.9500 |
| Maximum Rpm | 1000 |
| Axial Runout (Decimal Inch) | 0.0012 |
| Radial Runout (Decimal Inch) | 0.0024 |
| Body Length (Decimal Inch) | 5.0591 |
| Contents | (2) Hex Keys, Chuck Wrench, Eye Bolts (Chuck Size 15-3/4 in & Larger), Set of Hard Master Jaws, Set of Mounting Bolts, Set of Soft Top Reversible Jaws |
| Minimum Jaw Capacity (Inch) | 0.3940 |
| Through-Hole Diameter (Decimal Inch) | 5.3543 |
