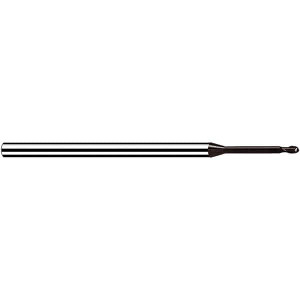

Fraisa 1mm Diam, 1.2mm LOC, 2 Flute Solid Carbide Ball End Mill Diamant Finish, Single End, 50mm OAL, 3" Shank Diam, Spiral Flute B5787100 - 18922385
Brand: Fraisa- SKU:
- 18922385
- ID:
- 608381
$136.56
Fraisa 1mm Diam, 1.2mm LOC, 2 Flute Solid Carbide Ball End Mill Diamant Finish, Single End, 50mm OAL, 3" Shank Diam, Spiral Flute
Manufacturer Part #: B5787100
S/N: 18922385
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.0394 |
| Mill Diameter (mm) | 1.00 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 1.20 |
| Coating/Finish | Diamant |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (mm) | 50.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 - 0.0500 |
| Length Type | Extended |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 3.00 |
| Neck Diameter (mm) | 0.95 |
| Nose Radius (mm) | 0.50 |
| Neck Length (mm) | 8.80 |
| Reach Length (mm) | 10.00 |
| Mill Diameter Tolerance | +0.01/-0.01 mm |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Primary Workpiece Material | Graphite |
| Primary Workpiece Material Code | O |
| Material Grade | Fine Grain |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | B5787 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Manufacturers Catalog Number | B5787100 |
| System Of Measurement | Metric |
