Royal Magnetic Chuck Stop Set, Standard - 25200

Royal Magnetic Chuck Stop Set, Standard - 25200

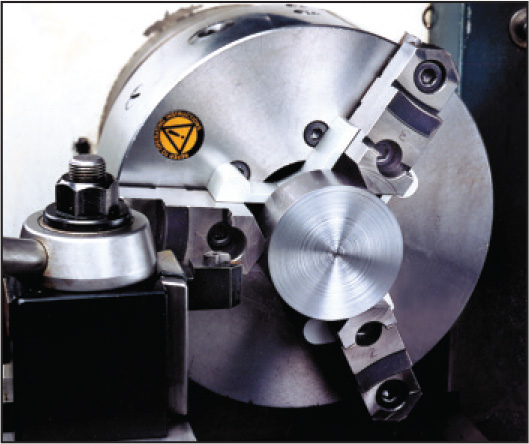

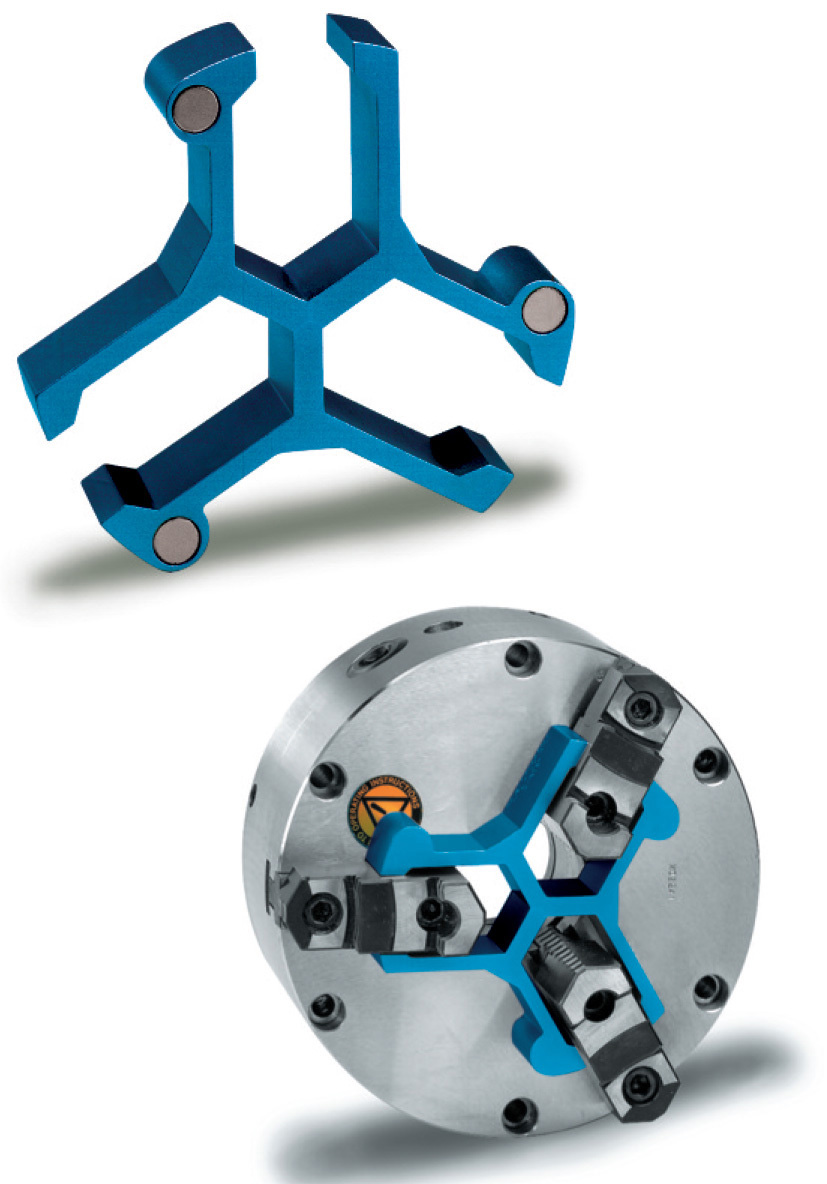

• The Royal Chuck Stop provides a simple, consistent method for locating short parts in a 3-jaw lathe chuck

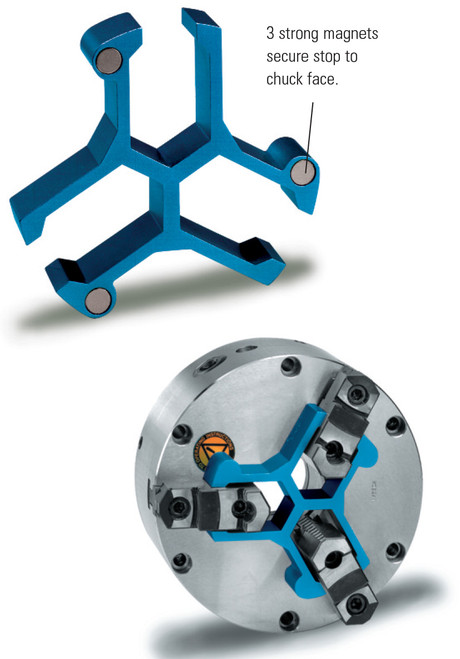

• Captive, web-shaped design eliminates the danger of using spacers or parallels that could come loose and be thrown from a spinning chuck. Three strong magnets further secure the stop to the chuck face.
• Stop allows short parts to project past the chuck jaws, providing clearance for facing operations
• Setup time is greatly reduced — no need to bore soft jaws
• The Royal Chuck Stop is very accurate — front and back locating surfaces are parallel within +/- 0.0004"
• Accommodates chuck jaws up to 55mm (21/8") wide
• Anodized finish provides good wear-resistance
