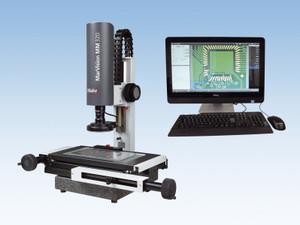

Mahr MarVision MM 320 Workshop Measuring Microscope - 26083801P
Brand: Mahr- SKU:
- 26083801P
- ID:
- 318051
| Range X/Y | 200 mm / 100 mm |
| Measuring Table | 370 mm x 210 mm |
$29,870.00
Mahr MarVision MM 320 Workshop Measuring Microscope - 26083801P
4247501
Measuring Microscope
- Integrated color camera
- Zoom lens, optionally motorized
- LED ring light: 1 ring and 4 segments, individually switchable and dimmable
- LED transmitted light: dimmable
- Solid granite base
- Sturdy steel XY table, precision-mounted
- Quick and fine adjustment of axes
- Optical incremental measuring system for outstanding accuracy and reliability
- Laser pointer for position finding
Control and display unit with M3 software and touchscreen PC
- 23" touchscreen with keyboard and mouse
- The operating system is Windows 8 Pro, so further software can be installed
- Operation via the Multi-Touch screen or with a mouse/keyboard
- Large video screen
- Reference/actual evaluation with tolerances
- Record output with company logo
- Graphical display with dimensioning
- Automatic edge detection, even on low-contrast parts
Specifications:
| Order No. | 26083801P | 26084001P | 26084201P |
| Mahr Model Number | 4247501 | 4247502 | 4247503 |
| Measuring Range X/Y # | 200 mm / 100 mm 7.9 in / 3.9 in | 250 mm / 170 mm 9.80 in / 6.7 in | 400 mm / 250 mm 15.7 in / 9.8 in |
| Z Travel | 200 mm / 400 mm** 7.9 in / 15.8 in** | ||
| Measuring Table Dimensions | 370 mm x 210 mm 14 .6 in x 8.3 in | 420 mm x 280 mm 16.5 in x 11.0 in | 600 mm x 480 mm 23.6 in x 18.9 in |
| Max. Table Load | 20 kg / 44 lbs | ||
| Measuring System: | Built-In Incremental Measuring Scale | ||
| Resolution | 0.001 μm / 0.00005 in | ||
| MPE E1 X / Y in μm (L in mm) | 1.9 +(L/100) | 3.9 +(L/100) | |
| MPE E2 XY in μm (L in mm) | 2.9 +(L/100) | 4.9 +(L/100) | |
| Working Distance | 85 mm / 3.3 in | ||
| Max. Height of Test Piece | ca. 65 mm / 300 mm** 2.6 in / 11.8 in** | 300 mm / 11.8 in | |
| Illumination | LED Incident and Transmitted Light, Individually Adjustable | ||
| Dimensions* H x W x D | 700 mm x 650 mm x 550 mm 27.6" x 25.6" x 21.6" | 700 mm x 700 mm x 600 mm 27.6" x 27.6" x 23.6" | 800 mm x 1000 mm x 900 mm 31.5" x 39.4" x 35.4" |
| Magnification*** | Zoom 35-225x | ||
See all Mahr MarVision MM 320 Workshop Measuring Microscopes
