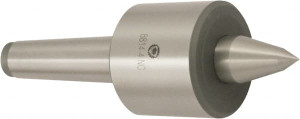

Bison MT4 Morse Taper Shank, 70mm Head Diam, Live Center 7,000 Max RPM, 28mm Point Diam, 1.93" Point Len, 2,205 Lb Max Workpc, Long Point 7-566-004 - 30311435
Brand: Bison- SKU:
- 30311435
- ID:
- 449460
$425.88
Bison MT4 Morse Taper Shank, 70mm Head Diam, Live Center 7,000 Max RPM, 28mm Point Diam, 1.93" Point Len, 2,205 Lb Max Workpc, Long Point
Manufacturer Part #: 7-566-004
S/N: 30311435
UNSPSC: 23153103
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Shank Type | Morse Taper |
| Material | Steel |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 2205.00 |
| Maximum Workpiece Weight (kg) | 1000.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 1.1023 |
| Point Diameter (mm) | 28.00 |
| Tip Diameter (mm) | 14.00 |
| Tip Diameter (Decimal Inch) | 0.5511 |
| Point Length (Decimal Inch) | 1.9300 |
| Accuracy (Decimal Inch) | 0.000100 |
| Accuracy | 1.0E-4in |
| Load Capacity | 2200.00lb |
| Head Diameter (Decimal Inch) | 2.7500 |
| Head Diameter (mm) | 70.00 |
| Included Angle | 60 |
| Maximum RPM | 7000 |
| Total Indicated Runout Accuracy | 0.00020 |
| Features | High-Speed NC Extended Revolving Centers with 60 Point |
