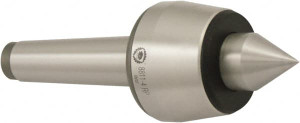

Bison MT5 Morse Taper Shank, 85mm Head Diam, Live Center 2,500 Max RPM, 40mm Point Diam, 1.73" Point Len, 4,190 Lb Max Workpc, Standard Point 7-565-105 - 30520449
Brand: Bison- SKU:
- 30520449
- ID:
- 449467
$508.16
Bison MT5 Morse Taper Shank, 85mm Head Diam, Live Center 2,500 Max RPM, 40mm Point Diam, 1.73" Point Len, 4,190 Lb Max Workpc, Standard Point
Manufacturer Part #: 7-565-105
S/N: 30520449
UNSPSC: 23153103
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Shank Type | Morse Taper |
| Material | Steel |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 4190.00 |
| Maximum Workpiece Weight (kg) | 1900.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 1.5740 |
| Point Diameter (mm) | 40.00 |
| Tip Diameter (mm) | 40.00 |
| Tip Diameter (Decimal Inch) | 1.5740 |
| Point Length (Decimal Inch) | 1.7300 |
| Accuracy (Decimal Inch) | 0.000100 |
| Accuracy | 1.0E-4in |
| Load Capacity | 4180.00lb |
| Head Diameter (Decimal Inch) | 3.3460 |
| Head Diameter (mm) | 85.00 |
| Included Angle | 60 |
| Maximum RPM | 2500 |
| Total Indicated Runout Accuracy | 0.00020 |
| Features | HD Revolving Centers with 60 Point |
