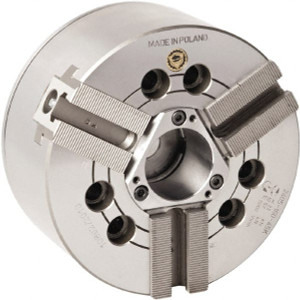

Bison 3 Jaw, 15.75" Chuck Diam, Plain Back Mount, 120mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck 1.5mm x 60° Serrated Jaw Interface, 1.9291 to 14.7637" Jaw Capacity, 2,500 RPM, High Speed Steel Body 7-781-1600 - 30521868
Brand: Bison- SKU:
- 30521868
- ID:
- 451109
$8,222.92
Bison 3 Jaw, 15.75" Chuck Diam, Plain Back Mount, 120mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck 1.5mm x 60° Serrated Jaw Interface, 1.9291 to 14.7637" Jaw Capacity, 2,500 RPM, High Speed Steel Body
Manufacturer Part #: 7-781-1600
S/N: 30521868
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Chuck Diameter (Inch) | 15-3/4 |
| Chuck Diameter (Decimal Inch) | 15.7500 |
| Chuck Diameter (mm) | 400.00 |
| Mount Type | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 4.7200 |
| Through-Hole Diameter (mm) | 120.00 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Jaw Interface Type | Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.9291 |
| Maximum Jaw Capacity (Decimal Inch) | 14.7637 |
| Jaw Stroke Diameter (mm) | 15.70 |
| Jaw Stroke Diameter (Decimal Inch) | 0.6180 |
| Piston Stroke Length (mm) | 34.00 |
| Maximum Drawbar Pulling Force (kN) | 71.00 |
| Maximum Drawbar Pulling Force (Lb.) | 15961.00 |
| Maximum Static Gripping Force (lbf) | 40465.00 |
| Maximum Static Gripping Force (kN) | 180.00 |
| Moment of Inertia (lb/sq ft) | 51.02 |
| Maximum RPM | 2500 |
| Material | Steel |
| Number Of Jaws | 3 |
