Stronghold Safety Silvaflame Lathe Lead Screw Cover, Set of 2, 12" x 118" - 410390
Brand: Stronghold Safety Engineering- SKU:
- 410390
- ID:
- 311986
| Roll Height | 12" |
| Max. Length | Up to 118" |
| Box Dimension | 3" x 3" |

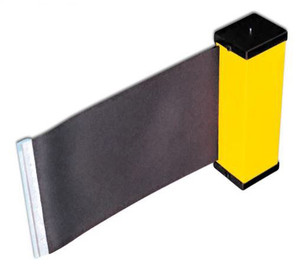

Stronghold Safety Silvaflame Lathe Lead Screw Cover
Set of 2
12" x 118" - 410390
Industrial-duty lead and feed screw cover for lathes. This safety guard installs on both sides of the carriage and covers the lead and feed screw completely to help prevent entanglements. Sold in sets of two covers.
Manufactured with a steel casing, the guard uses heavy weight neoprene nylon as its sheet medium, sprung to give a full closure against the leadscrew, therefore increasing protection for the operator.
Working just like a window blind, the swarf and emulsion resistant heavy weight neoprene nylon material pulls out of its spring loaded roller box as the lathe saddle moves, and recoils as the saddle returns.
The guard is supplied with standard mounting brackets, but it is the purchasers responsibility to manufacture suitable brackets to suit individual machines.
Features:
- All steel box
- Swarf and cutting emulsion resistant
- Standard mounting brackets supplied - Additional brackets may be needed
- Comes with two (2) covers - One for each side of the saddle
- Roller height size options range from 6" to 12"
Click to Download Installation Instructions
Specifications:
| Part Number | 410390 |
| Previous Part Number | SF-LSC-5 |
| Machine Type Application | Lathe - Metal |
| Manufacturer | Silvaflame - Cleervue |
| Country of Manufacture | UK |
| Color | Yellow |
| Mounting Type | Hardware Secured |
| Interlocking | No |
See all Stronghold Safety Silvaflame Lathe Lead Screw Covers, Sets of 2
