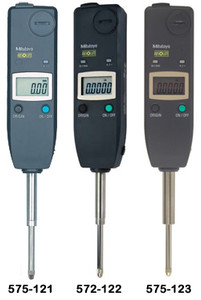

Mitutoyo ABSOLUTE Digimatic Indicator ID-U Series 575 - 575-121
Brand: Mitutoyo- SKU:
- 575-121
- ID:
- 100783
Accuracy | 0.02mm |
Measuring Force | 1.8N or less |
Range | 0-25.4mm |
Resolution | 0.01mm |
$221.00
ABSOLUTE Digimatic Indicator ID-U Series 575-with Slim and Simple Design
FEATURES:
Slim type digital indicator with low price.
Large LCD and simple key operation.
After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life; the origin is remembered even after power-off.
Ideal for installation into measuring devices because of it’s compact design and long battery life.
Employing the ABSOLUTE linear encoder, the ID-U always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
Flat back type only no option for backs.
SPC data output.
Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm or .0005"/0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: Refer to the list of specifications
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours under normal use
Dust/Water protection level: IP42
Function
Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion
(on inch/metric models only)
Alarm: Low voltage, Counting value composition error, Over-flow error
FEATURES:
Slim type digital indicator with low price.
Large LCD and simple key operation.
After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life; the origin is remembered even after power-off.
Ideal for installation into measuring devices because of it’s compact design and long battery life.
Employing the ABSOLUTE linear encoder, the ID-U always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
Flat back type only no option for backs.
SPC data output.
Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm or .0005"/0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: Refer to the list of specifications
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours under normal use
Dust/Water protection level: IP42
Function
Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion
(on inch/metric models only)
Alarm: Low voltage, Counting value composition error, Over-flow error
