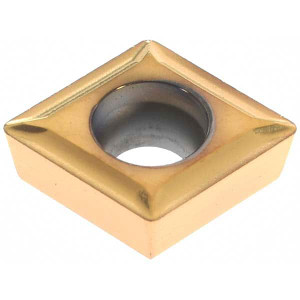

Hertel CPMT2151LF HC210 Carbide Turning Insert TiN Finish, Neutral, 6.45mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond 1000613 - 91789313
Brand: Hertel- SKU:
- 91789313
- ID:
- 669830
$17.75
Hertel CPMT2151LF HC210 Carbide Turning Insert TiN Finish, Neutral, 6.45mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond
Manufacturer Part #: 1000613
S/N: 91789313
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 11 |
| Insert Style | CPMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 80.0 |
| Manufacturer Grade | HC210 |
| Coating/Finish | TiN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Insert Length (mm) | 6.45 |
| Insert Length (Decimal Inch) | 0.2539 |
| Primary Workpiece Material | M, N, S |
| Secondary Workpiece Material | K |
| Material Grade | C2, C4 |
| Chip Breaker | T |
| Style | CPMT21.51 |
| Insert Size Code | 21.51 |
