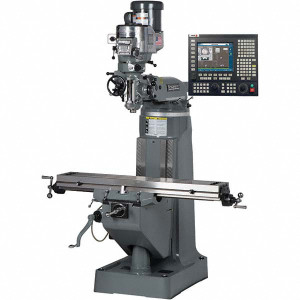

Bridgeport Knee Milling Machine: 6.75 x 18.75", 2 hp, Variable Speed Pulley Control, 3 Phase 60 to 4,200 RPM, R8 Spindle Taper 9281335/0846961 - 94929981
Brand: Bridgeport Milling Machine- SKU:
- 94929981
- ID:
- 874533
$62,677.62
Bridgeport Knee Milling Machine: 6.75 x 18.75", 2 hp, Variable Speed Pulley Control, 3 Phase 60 to 4,200 RPM, R8 Spindle Taper
Manufacturer Part #: 9281335/0846961
S/N: 94929981
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Spindle to Column Distance (Decimal Inch) | 6.7500 |
| Minimum Spindle to Column Distance (Inch) | 6-3/4in |
| Minimum Spindle to Column Distance (mm) | 64.00 |
| Minimum Spindle to Table Distance (Decimal Inch) | 3.0000 |
| Minimum Spindle to Table Distance (Inch) | 3 |
| Maximum Spindle to Table Distance (mm) | 463.55 |
| Maximum Spindle to Table Distance (Decimal Inch) | 18.2500 |
| Table Length (Inch) | 49 |
| Minimum Spindle Speed | 60RPM |
| Table Width (Inch) | 9 |
| Maximum Spindle Speed | 4200RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90.0 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Cross Travel | 12.0in |
| Longitudinal Travel | 36.0in |
| Longitudinal Travel (Decimal Inch) | 36.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Knee Travel | 16.0in |
| Quill Diameter (mm) | 85.73 |
| Quill Diameter (Decimal Inch) | 3.3740 |
| Horsepower | 2.00 |
| Table Load Capacity (kg) | 340.19 |
| Table Load Capacity (Lb.) | 750.00 |
| Ram Travel Length (Decimal Inch) | 12.0000 |
| Ram Travel Length (mm) | 304.80 |
| Ram Travel Length (Inch) | 12 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (mm) | 127.00 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Number Of T-slots | 3 |
| Overall Height (Decimal Inch) | 86.0000 |
| Overall Height (Inch) | 86 |
| Overall Length (Inch) | 60 |
| Overall Length (Decimal Inch) | 60.0000 |
| Overall Depth (Decimal Inch) | 61.0000 |
| Overall Depth (Inch) | 61 |
| Includes | 3/4-10 Flanged Nut, 3/8 in Baring Retainer Ring, 8060 9x49 in 208/230/440V CNC Mill Machine, Miniature Limit Switch |
| Maximum Spindle To Column Distance (Decimal Inch) | 18.7500in |
| Maximum Spindle To Column Distance (Inch) | 18-3/4 |
