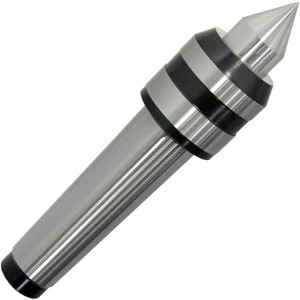

Accupro Live Centers, Shank Type: Morse Taper, Taper Size: MT5, Maximum Workpiece Weight (Lb.): 1,102.30, Maximum Workpiece Weight (kg): 500.00, Point Style: Standard, Point Diameter (mm): 28.00 781031 - 95692182
Brand: Accupro- SKU:
- 95692182
- ID:
- 449427
$435.10
Accupro Live Centers, Shank Type: Morse Taper, Taper Size: MT5, Maximum Workpiece Weight (Lb.): 1,102.30, Maximum Workpiece Weight (kg): 500.00, Point Style: Standard, Point Diameter (mm): 28.00
Manufacturer Part #: 781031
S/N: 95692182
UNSPSC: 23153103
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Shank Type | Morse Taper |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 650.00 |
| Maximum Workpiece Weight (kg) | 500.00 |
| Point Style | Standard |
| Point Diameter (mm) | 28.00 |
| Point Length (mm) | 35.00 |
| Accuracy (Decimal Inch) | 0.000120 |
| Accuracy | 1.0E-4in, 0.003mm |
| Load Capacity | 1102.31lb |
| Head Diameter (mm) | 63.00 |
| Shank Length (Decimal Inch) | 5.3543 |
| Overall Length (mm) | 229.00 |
| Point to Gauge Line (mm) | 99.30 |
| Included Angle | 60 |
| Maximum RPM | 4000 |
| Carbide-tipped Point | No |
