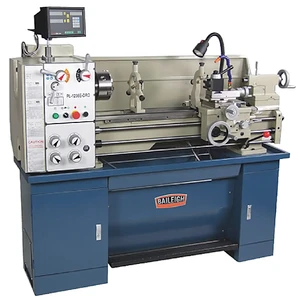

Baileigh Metal Lathe with DRO

Baileigh Metal Lathe with DRO

• Integrated gear system that allows for taping, turning, and polishing.
• Designed for precisely machining relatively hard materials.
• Remove material from a rotating workpiece.
• 2-axis digital readout.
• All ways are ground and hardened to ensure long life.
• Dual voltage system that allows the operator to choose what voltage will suit their needs the best.
• Adjustable gibs to make sure they slide as free as possible with no binding.
• Includes 6" three and 8" four jaw chucks, steady rest, follow rest, face plate, live center, quick change
  toolholder, foot brake, coolant system with splash guard, removable chip tray, stand and halogen work light.

Specifications:

• Swing Over Bed: 12"
• Distance Between Centers: 36"
• Spindle Bore Diameter: 1.5"
• Spindle Mount: D1-4
• Spindle Taper: 5MT
• Tailstock Taper: 3MT
• Horsepower: 2 HP
• Spindle Speed Range: 70 - 1400 RPM
• Spindle Speed: 70 - 1,400 RPM
• No. of Spindle Speeds: 9
• Voltage: 220V
• Phase: 1 PH
• Bed Width: 7.125"
• Cross Slide Travel: 5.312"
• Gap Length: 6"
• Metric Threads: 0.4mm - 7mm
• Range of Cross Feeds: .007" - .0187" / Rev.
• Range of Longitudinal Feeds: .002" - .0548" / Rev.
• Sleeve Diameter: 1.250"
• Sleeve Taper: Morse #3
• Sleeve Travel: 4"
• Spindle Bore: 1.50"
• Spindle Nose: D1-4
• Spindle Taper With Sleeve: MT3
• Swing Over Cross Slide: 7.625"
• Swing Through Gap: 17"
• Thread Pitch: 8 TPI
