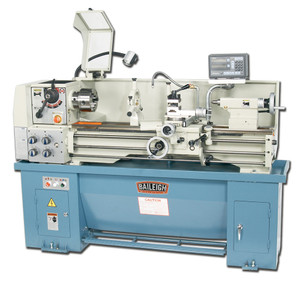

Baileigh PL-1340 Metal Lathe, 13" Swing, 40" Length - BA9-1006057

The PL-1340 precision metal lathe from Baileigh Industrial is perfect for those machine shops where precision cannot be compromised. Like all Baileigh Industrial precision lathes, this small yet sturdy lathe is built to exacting specifications using only the best quality components. The PL-1340 is powered by 220 volt single phase power which makes it great for those shops where power selection is limited.

The PL-1340 is a gear head metal lathe that offers eight speeds that vary from 70 to 2000 RPM. It also uses precision ground and hardened slide ways for all movement of the machining carriage. But, even the best ways are only as good as the castings they are attached to, so to make the PL-1340 one of the most rigid in its class, Baileigh Industrial only uses the best castings in the industry for both fit and finish.

Other features included as standard on the PL-1340 precision metal lathe are; a halogen light, three jaw chuck, flood coolant system, backsplash, four way tool post and steady and follow rests. Another nice feature of the PL-1340 is that it has a factory installed Mitutoyo DRO (digital read out) great for making precise cuts.

Equipped with a Mitutoyo DRO, quick-change tool post, and cast iron base, this compact gear-head metal lathe is one of the most rigid in its class.

  • 8 speeds from 70 to 2,000 rpm.
  • 2 hp motor runs on 220-volt single-phase power, great for shops with limited power.
  • No assembly required.
  • Comes with a factory-installed Mitutoyo DRO (digital readout) for making precise cuts.
  • Capable of making metric and standard threads.
  • Quick-change 4-way tool post saves you time and hassle.
  • All movement of the machining carriage rides on precision ground and hardened slideways.
  • This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter.
  • We use the best iron castings in the industry to support the ways and maintain high accuracy over many years of use.
  • Comes standard with:
    • 3-jaw chuck.
    • Headstock chuck guard with automatic safety switch.
    • Steady rest and follow rest.
    • Emergency foot brake.
    • Flood coolant system (with backsplash guard) to prolong machine life.
    • Halogen work light.
  • Covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone from Baileigh's team of experienced metalworkers.

Specifications:

Part Number PL-1340
Stock Number BA9-1006057
Set Over +/– .375"
Speed 70 – 2000 rpm
Spindle Bore 1.5"
Threads Diametrical Qty Type 32 / 8–120 D.P.
Threads Imperial Qty Type 31 / 4–56 T.P.I.
Threads Metric Qty Type 26 / .4–7 mm pitch
Threads Module Qty Type 21 / .2–3 M.P.
Spindle Taper Sleeve Morse #3
Spindle Taper Nose Morse #5
Tailstock Quill Dia 1.65"
Tailstock Quill Taper Morse #3
Tailstock Quill Travel 4.5"
Compound Rest Travel 2.68"
Compound Rest Width 3"
Center Height 6.5"
Bed Length 5.125"
Bed Width 7.375"
Bend Height 11.41"
Longitudinal Feeds Metric Qty Speed 32 / .052 – 13.92 mm / rev.
Main Motor 2 hp
Longitudinal Feeds Imperial Qty Speed 32 / .0020" – .5480" / rev.
Lead Screw Diameter .875"
Lead Screw Thread Pitch 8 T.P.I.
Max. Swing In Gap Length 4.5"
Max. Swing Over Bed 13"
Max. Swing Over Cross Slide 7.79"
Max. Swing In Gap Dia 18.75"
Cross Slide Travel 6.29"
Cross Slide Width 4.625"
Cutting Tool Max Section .625" x .625"
Distance Between Centers 40"
Feed Rod .75 dia.
Power 220V 1-Phase
Shipping Weight 1,630 lbs.
Shipping Dimensions 76" x 40" x 62"
