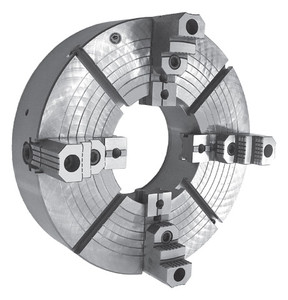

Bison 4347 HD 4-Jaw Oil Country Chuck with Large Through-Hole, 20" Diameter, D1-8 Taper - 7-859-6200
Brand: Bison- SKU:
- 7-859-6200
- ID:
- 361747
Diameter | 20" |
Taper Size | D1-8 |
$11,520.00
Bison 4347 HD 4-Jaw Oil Country Chuck
with Large Through-Hole
20" Diameter, D1-8 Taper
7-859-6200
20" Dia. 4-Jaw Independent Lathe Chuck, D Type
Features:
- BISON OIL COUNTRY CHUCKS HD with large through-holes are designed for gripping long and heavy workpieces or pipes during heavy-duty (HD) machining
- High gripping force
- High accuracy
- Heavy-duty operations
- Chucks can work individually or in pairs, mounted on opposite sides of the lathe spindle
Standard Accessories:
- 1 Set of hard top jaws
- 1 Set of hard master jaws
- 1 Wrench
Specifications:
Item Number | 7-859-6200 |
Type | 4347-20"-8-5.3" HD |
A (Dia.) | 19.69" |
Taper Size | 8 |
B | 5.50" |
C | 5.35" |
D | 6.75" |
E | 1.00" |
F | 2.00" |
G | 5.71" |
H | 6.07" |
I | 2.98" |
K | 0.87" |
L | 2.36" |
N | 0.75" |
Clamping Range | 1.77 - 19.69" |
Torque on Wrench (lb/ft) | 259 |
Gripping Force per Jaw (lbf) | 7,190 |
Max. RPM | 1,000 |
Weight | 467 lbs. |
View Specification Sheet
See all Bison 4347 HD 4-Jaw Oil Country Chucks with Large Through-Hole
