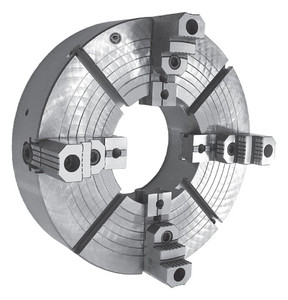

Bison 4347 HD 4-Jaw Oil Country Chuck with Large Through-Hole, 28" Diameter, D1-11 Taper - 7-859-6839
Brand: Bison- SKU:
- 7-859-6839
- ID:
- 361749
| Diameter | 28" |
| Taper Size | D1-11 |
$15,399.00
Bison 4347 HD 4-Jaw Oil Country Chuck
with Large Through-Hole
28" Diameter, D1-11 Taper
7-859-6839
28" Dia. 4-Jaw Independent Lathe Chuck, D Type
Features:
- BISON OIL COUNTRY CHUCKS HD with large through-holes are designed for gripping long and heavy workpieces or pipes during heavy-duty (HD) machining
- High gripping force
- High accuracy
- Heavy-duty operations
- Chucks can work individually or in pairs, mounted on opposite sides of the lathe spindle
Standard Accessories:
- 1 Set of hard top jaws
- 1 Set of hard master jaws
- 1 Wrench
Specifications:
| Item Number | 7-859-6839 |
| Type | 4347-28"-11-7,5" HD |
| A (Dia.) | 27.95" |
| Taper Size | 11 |
| B | 7.75" |
| C | 7.56" |
| D | 9.25" |
| E | 1.19" |
| F | 2.39" |
| G | 6.10" |
| H | 6.58" |
| I | 3.57" |
| K | 0.87" |
| L | 2.95" |
| N | 0.87" |
| Clamping Range | 2.95 - 27.95" |
| Torque on Wrench (lb/ft) | 331 |
| Gripping Force per Jaw (lbf) | 9,217 |
| Max. RPM | 750 |
| Weight | 992 lbs. |
View Specification Sheet
See all Bison 4347 HD 4-Jaw Oil Country Chucks with Large Through-Hole
