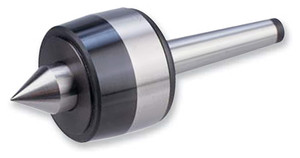

Bison Precision and Super Precision Live Centers
- Machined from one piece of forging, hardened and precisely ground
- Lubricated with a special grease and do not require any additional lubrication
- Three precision high-quality bearings are protected by a special steel shield and neoprene seal
Specifications:
| Precision Live Centers | ||||
| ITEM NUMBER | 67-089-3 | 67-090-1 | 67-091-9 | 67-092-7 |
| MORSE TAPER | MT 2 | MT 3 | MT 4 | MT 5 |
| OUTSIDE DIA. (D) | 1.57" | 2.20" | 2.52" | 3.35" |
| POINT DIA. (d) | 0.70" | 0.98" | 1.10" | 1.61" |
| OAL (L) | 4.74" | 6.14" | 7.24" | 9.33" |
| POINT LENGTH (L1) | 0.87" | 1.12" | 1.24" | 1.77" |
| PROJECTION LENGTH (L2) | 2.22" | 2.95" | 3.21" | 4.23" |
| MAX. RPM | 5000 | 4000 | 3000 | 2500 |
| LOAD CAPACITY | 220 lbs. | 925 lbs. | 1850 lbs. | 4400 lbs. |
| ACCURACY | 0.0003" | 0.0003" | 0.0003" | 0.0004" |
| Super Precision Live Centers | ||||||
| ITEM NUMBER | 67-094-3 | 67-095-0 | 67-096-8 | 67-097-6 | 67-098-4 | 67-099-2 |
| MORSE TAPER | MT 1 | MT 2 | MT 3 | MT 4 | MT 5 | MT 6 |
| OUTSIDE DIA. (D) | 1.50" | 1.57" | 2.20" | 2.52" | 3.35" | 5.12" |
| POINT DIA. (d) | 0.59" | 0.70" | 0.98" | 1.10" | 1.61" | 2.48" |
| OAL (L) | 4.07" | 4.74" | 6.14" | 7.24" | 9.33" | 13.13" |
| POINT LENGTH (L1) | 0.70" | 0.87" | 1.12" | 1.24" | 1.77" | 2.52" |
| PROJECTION LENGTH (L2) | 1.97" | 2.22" | 2.95" | 3.21" | 4.23" | 5.96" |
| MAX. RPM | 5000 | 5000 | 4000 | 3000 | 2500 | 2000 |
| LOAD CAPACITY | 220 lbs. | 460 lbs. | 925 lbs. | 1850 lbs. | 4400 lbs. | 7700 lbs. |
| ACCURACY | 0.0002" | 0.0001" | 0.0001" | 0.0001" | 0.0002" | 0.0002" |
