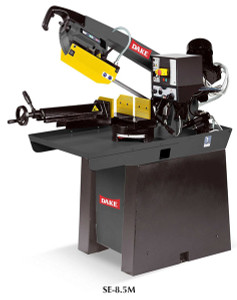

Dake Mitering Bandsaw 8.5" Round - SE-8.5M
Heavy duty, low production mitering saw that comes with one standard Bi-metal blade. Dual operating modes and hydraulic controlled down feed. 1.75HP, 220V motor with up to 60°right mitering capabilities. Ergonomic design for operator’s comfort and control. Horizontally mounted guide arms for more rigidity and straightest cuts.
- Hydraulic controlled down feed with manual return
- Automatic shut off at the end of the cut
- Dual operating modes, manual cutting or head feed cutting
- Powerful, manual clamping vise, with quick release lever for rapid vise opening and closing action for fast material size change over. The vise clamps material firmly.
- Ergonomic designed for operator’s comfort and control
- Motor gearbox combination bolted to the bow for less vibration
- Variable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cutting
- CE Certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switch
- Blade tensioning is done via. “Go No Go” tensioning system with LED taking the guess work out of tensioning. Saw will not run if blade tension is not correct
- Miters up to 60° right. Mitering pre-sets with slide stops makes set up fast and has precise with miter scale for all angles in between. The head turns-the material doesn’t
- Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable
- Electric coolant pump and self-contained coolant system
- 120 volt means you can use it most anywhere
- Steel fabricated base, and stock stop gauge, one Bi-metal blade
Item No. | SE-8.5M |
Capacity | 8-1/2" Round |
Horsepower | 1.75 |
Voltage | 120V 3 Phase |
Max. Blade Speed | 230 FPM |
Blade Width | 1" |
Blade Length | 101" |
Blade Speed | 114-230 FPM |
Solid Round 90º Capacity | 8-1/2" |
Solid Round 45º Right Capacity | 6-3/4" |
Solid Round 60º Right Capacity | 4-1/4" |
Solid Square 90º Right Capacity | 7-3/4" |
Solid Square 45º Right Capacity | 6-3/4" |
Solid Square 60º Right Capacity | 4-1/4" |
Solid Rectangle 90º Capacity | 10-3/8" x 7-3/4" |
Solid Rectangle 45º Right Capacity | 7-3/4" x 6-1/4" |
Solid Rectangle 60º Right Capacity | 4-1/2" x 4" |
Worktable Height | 37" |
Height | 71" |
Floor Space | 33" x 58" |
